| LCD Display: | High Definition LCD, Touch Screen Operation, Menu Operation Interface | Loading System: | High Precision Loading System Can Effectively Avoid The Overload Of Force Measurement And Greatly Improve The Loading Speed |
|---|---|---|---|
| Pedal Switch Design: | Automatic Lifting Of The Working Platform As A Whole And The Initial Test Force Of The Automatic Load Can Ensure The Stable Generation Of The Force Measurement | Curve Display: | Curve Display Of The Testing Process Can Visually Display The Material Characteristics, And Facilitate Observation And Learning |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

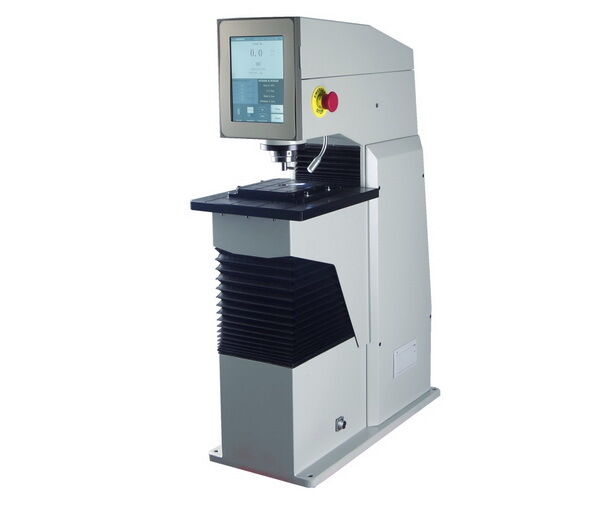

MHRS-145Z Full
Automatic Twin Rockwell Hardness Tester with Precision Displacement Sensor
Download Technical Data: iqualitrol ROCKWELL TESTER MHRS-145Z
Brief Introduction:
The iqualitrol full automatic superficial and regular Rockwell hardness tester adopts advanced closed-loop sensor control technology to realize automatic control and hardness testing process.
The loading system uses a high precision force sensor and a central controller to form a closed loop to track and control the whole microsecond loading process.
High precision displacement sensor is used in Bathymetric system, and the resolution of minimum hardness is 0.1HR.
The position of indenter is fixed and the hardness is tested by moving the platform up and down. The overall movement of the large platform eliminates the gap caused by the lifting of the screw, greatly improves the accuracy and repeatability of the test, and also increases the stability and efficiency of the machine.
New foot switch function, one-button measurement, save a lot of manpower, convenient for field use.
Technical Specifications:
| Model | MHRS-145Z |
| Initial test force | 3kgf, 10kgf 29.4N, 98N |
| Main test force | 15kgf, 30kgf, 45kgf, (147.1N, 294.2N, 441.3N) (MHRS-45Z) 60kgf, 100kgf, 150kgf, (588.4N, 980.7N, 1471N) (MHRS-150Z) |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Testing range | HR15N: 70-94, HR30N: 42-86, HR45N: 20-77, HR15T: 67-93, HR30T: 29-82, HR45T: 10-72 |
| indenters | Diamond Rockwell indenter, Φ1.5875mm steel ball indenter |
| Executive standards | ISO 6508, GB/T230, JJG112, ASTM E18 |
| Scale conversion | HR, HB, HV, HK, based on ASTM E 140 |
| Indication of Hardness Value | LCD Display |
| Date output | Built-in printer, RS-232 interface |
| Vertical Space | 190mm, Maximum height of specimen |
| Depth Throat | 165mm, Distance from the center of the indenter to the body |
| Power supply | AC90-240V, 50-60Hz |
| Shape size | 590*260*890mm |
| net weight | About 150kg |
