Product Details:
Payment & Shipping Terms:
|
| Tube Diamter: | 6mm, Length 2m | Camera: | 0.45 Mega Pixel |
|---|---|---|---|
| Bending: | 360° All‐way Articulation | Optional: | Temperature Measure, WIFI |
| Application: | Condensers, Piping And Turbines | Depth Of Field: | 20mm～150mm/ 10-100mm |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

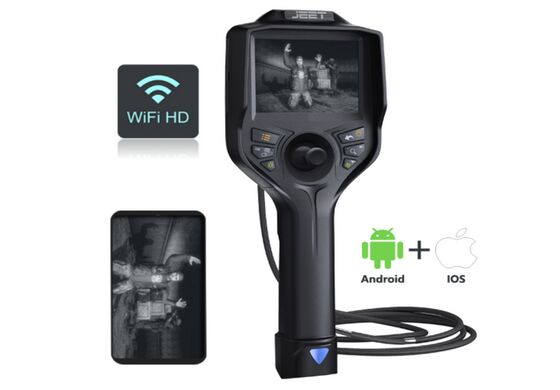

Power Generation Industrial Borescope Videoscope with 2M Insertion
Tube and 5.7" LCD Monitor
Model: i35-6020F
Brief Introduction:
iqualitrol remote visual inspection videoscopes systems are designed to meet the demands of the modern industrial inspection environment. They offer portable and intelligent remote imaging solutions with a host of advanced, yet intuitive features, making them ideal remote visual inspection instruments.
A wider range of videoscope, fiberscopes and borescopes with various diameters and viewing options are available, making our videoscopes systems the most versatile inspection system suitable for a multitude of inspection requirements.
The compact and lightweight videoscopes achieve high quality inspections at any site, featuring versatile functionality and proven reliability under demanding circumstances.
Application:
Power Generation, Maintenance of heat exchanger pipes, condensers, piping and turbines in nuclear and thermal power Generation plants, and gearboxes of wind power generation facilities.
iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.
Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Operation Environment:
| Host System Working Temperature | -20°C~50°C, when 0°C below, the display needs preheating. |
| Camera Working Temperature | -20°C~80°C, when 0°C below, please reduce oriented operation. |
| Store Temperature | -23°C~63°C |
| Relative Humidity | Maximum: 92%, non-condensing |
Technical Specifications:
| Camera Diameter(mm) | Φ6mm |
| Camera Material | Titanium alloy |
| Camera Pixel | 0.45 Mega Pixel |
| Depth of Field | 20mm～150mm/ 10-100mm |
| Angle of Field | 120° |
| Illumination | 30,000lx at a maximum |
| Bright/Chroma/Contrast Ratio Adjustment | Manual, bright: six levels, chroma and contrast ratio: manual adjusting |
| Articulation | 360° all-way articulation |
| Bending Angle | ≥180° |
| Effective Working Length | 2m |
| Insert Tube | tungsten-braided |
| Protecting Device of Durability |
Buffer protection device between the host and wear-resistant tube |
| Display | Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display |
| Display Resolution | 640*480 |
| Image Resolution | 640*480/1280*720/1920*1080 |
| Video Resolution | 640*480/1280*720/1920*1080 |
| Image/Video Format | JPEG/MOV |
| WIFI Function | WIFI(optional) |
| IR Function | IR/IR thermal imaging(optional) |
| Memory | Standard TF card:8G, Maximum: 32G |
| Language | Chinese, English, Russian… 8 languages |
| Data I/O port | Micro-USB port,HDMI port |
| Waterproof | Camera/Object glass/Tubes:IP67 |
| Working Time | ≥8 hours |
| Weight | ≤0.55kg(with batteries) |
| Power Supply | Rechargeable lithium battery(or built-in battery) |
| Battery Capacity | 3.7V 3200mAh |
| Power Consumption | 2W |
| Charging Parameters | DC5V, Maximum current:1A |
