|Operation OS:||Android OS, 5.7" HD Monitor||Insert Tube:||Dia. 3.9mm, Length 1M|
|Depth Of Field:||10-100mm||Articulation:||360° All-way Articulation|
|Application:||Automotive, Security Checking, Aviation, Aerospace||Image Resolution:||640*480/1280*720/1920*1080|
non destructive testing machine,
non destructive testing instruments

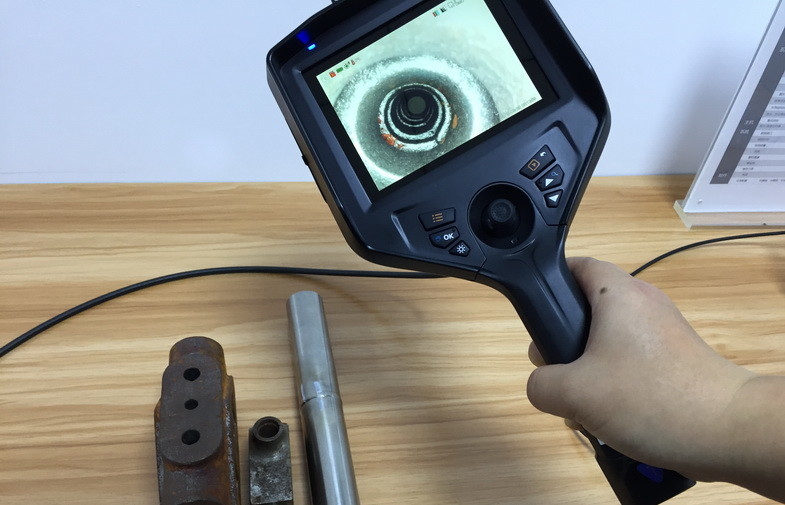

NDT Technology Megapixel Camera 3.9mm Industrial Borescope Videoscope with Android System
iqualitrol video borescope or "inspection camera" is similar to the flexible borescope but uses a miniature video camera at the end of the flexible tube.
The end of the insertion tube includes a light which makes it possible to capture video or still images deep within equipment, engines and other dark spaces. As a tool for remote visual inspection the ability to capture video or still images for later inspection is a huge benefit.
A display at the other end shows the camera view, and in some models the viewing position can be changed via a joystick or similar control. Because a complex fiber optic waveguide in a traditional borescope is replaced with an inexpensive electrical cable, video borescopes can be much less costly and potentially better resolution (depending on the specifications of the camera).
Costs for video borescopes depends upon options and specifications. Easy-to-use, battery-powered video borescopes, with 3.5/5.7" LCD displays 0.45Mpixels or better.
On many of these models, the video camera and flexible tube is submersible. Later models offered improved features, such as lower cost, better resolution, adjustable illumination or replacing the built-in display with a computer connection, such as a USB cable.
iqualitrol Borescopes are used to non destructively inspect industrial systems and equipment for condition, manufactured parts for quality and security and law enforcement for contraband, intelligence and safety.
Common Inspections Include internal viewing of:
|Aircraft Turbines||Airframe Inspections||Bearings & Gearboxes|
|Chemical Processing||Co-Gen Plants||Corrosion|
|Down-Hole Motors / PC Pumps||Electronic Assemblies||Heat Exchangers and Boilers|
|Heavy Equipment Maintenance||HVAC and Mechanical||Land-Based Turbines|
|Large Diesel Engines||Metal Castings||Military / EOD / Law Enforcement|
|Mining & Exploration Maintenance||Nuclear Power||Oil & Gas Maintenance|
|Paper Mills||Power Gen||Pumps & Valves|
|Reciprocating Engines||Refineries||Wind Turbines|
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
|Host System Working Temperature||-20°C~50°C, when 0°C below, the display needs preheating.|
|Camera Working Temperature||-20°C~80°C, when 0°C below, please reduce oriented operation.|
|Relative Humidity||Maximum: 92%, non-condensing|
|Camera Material||Titanium alloy|
|Camera Pixel||Mega Pixel|
|Depth of Field||20mm～150mm/ 10-100mm|
|Angle of Field||120°|
|Illumination||30,000lx at a maximum|
|Bright/Chroma/Contrast Ratio Adjustment||Manual, bright: six levels, chroma and contrast ratio: manual adjusting|
|Articulation||360° all-way articulation|
|Effective Working Length||2m|
|Protecting Device of
|Buffer protection device between the host and wear-resistant tube|
|Display||5.7 inches display|
|IR Function||IR/IR thermal imaging(optional)|
|Memory||Standard TF card:8G, Maximum: 32G|
|Language||Chinese, English, Russian… 8 languages|
|Data I/O port||Micro-USB port,HDMI port|
|Working Time||≥8 hours|
|Power Supply||Rechargeable lithium battery(or built-in battery)|
|Battery Capacity||3.7V 3200mAh|
|Charging Parameters||DC5V, Maximum current:1A|
