Video: | Resolution 640*480/1280*720/1920*1080 | Insert Tube: | Tungsten-braided |
---|---|---|---|
Illumination: | 30,000lx At A Maximum | Camera: | Dual Camera With 0.45MP |
IR Function: | IR/IR Thermal Imaging(optional) | Application: | Gas Turbines, Steam Turbines, Diesel Engines |
Highlight: | non destructive testing instruments,fruit hardness tester |

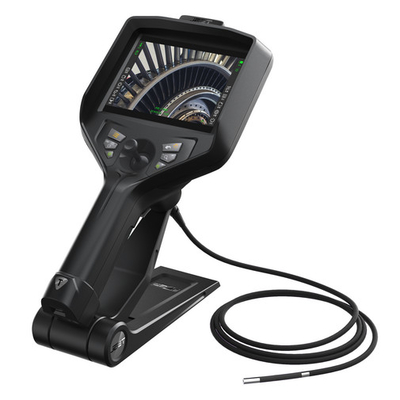

Dual Camera 0.45MP Industrial Videoscope 5m Tube Length for Visual Inspection Aircraft Engines
Model: i35-6050D
Brief Introduction:
iqualitrol remote visual inspection videoscopes systems are designed to meet the demands of the modern industrial inspection environment. They offer portable and intelligent remote imaging solutions with a host of advanced, yet intuitive features, making them ideal remote visual inspection instruments.
A wider range of videoscope, fiberscopes and borescopes with various diameters and viewing options are available, making our videoscopes systems the most versatile inspection system suitable for a multitude of inspection requirements.
Application:
Borescopes are commonly used in the visual inspection of aircraft engines, aeroderivative industrial gas turbines, steam turbines, diesel engines, and automotive and truck engines.
Gas and steam turbines require particular attention because of safety and maintenance requirements.
Borescope inspection of engines can be used to prevent unnecessary maintenance, which can become extremely costly for large turbines. They are also used in manufacturing of machined or cast parts to inspect critical interior surfaces for burrs, surface finish or complete through-holes.
Other common uses include forensic applications in law enforcement and building inspection, and in gunsmithing for inspecting the interior bore of a firearm. In World War II, primitive rigid borescopes were used to examine the interior bores (hence "bore" scope) of large guns for defects.
Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Operation Environment:
Host System Working Temperature | -20°C~50°C, when 0°C below, the display needs preheating. |
Camera Working Temperature | -20°C~80°C, when 0°C below, please reduce oriented operation. |
Store Temperature | -23°C~63°C |
Relative Humidity | Maximum: 92%, non-condensing |
Technical Specifications:
Camera Diameter(mm) | Φ6mm |
Camera Material | Titanium alloy |
Camera Pixel | 0.45 Mega Pixel |
Depth of Field | 20mm~150mm/ 10-100mm |
Angle of Field | 120° |
Illumination | 30,000lx at a maximum |
Bright/Chroma/Contrast Ratio Adjustment | Manual, bright: six levels, chroma and contrast ratio: manual adjusting |
Articulation | 360° all-way articulation |
Bending Angle | ≥180° |
Effective Working Length | 2m |
Insert Tube | tungsten-braided |
Protecting Device of Durability | Buffer protection device between the host and wear-resistant tube |
Display | Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display |
Display Resolution | 640*480 |
Image Resolution | 640*480/1280*720/1920*1080 |
Video Resolution | 640*480/1280*720/1920*1080 |
Image/Video Format | JPEG/MOV |
WIFI Function | WIFI(optional) |
IR Function | IR/IR thermal imaging(optional) |
Memory | Standard TF card:8G, Maximum: 32G |
Language | Chinese, English, Russian… 8 languages |
Data I/O port | Micro-USB port,HDMI port |
Waterproof | Camera/Object glass/Tubes:IP67 |
Working Time | ≥8 hours |
Weight | ≤0.55kg(with batteries) |
Power Supply | Rechargeable lithium battery(or built-in battery) |
Battery Capacity | 3.7V 3200mAh |
Power Consumption | 2W |
Charging Parameters | DC5V, Maximum current:1A |
