Product Details:
Payment & Shipping Terms:
|
| Model: | Iqualitrol KC-9363A | Test Standard: | ASTM D999 |
|---|---|---|---|
| Max Load: | 0-100KG (opt. 300KG) | Vibration Mode: | Rotary Vibration (Vertical And Horizontal) |

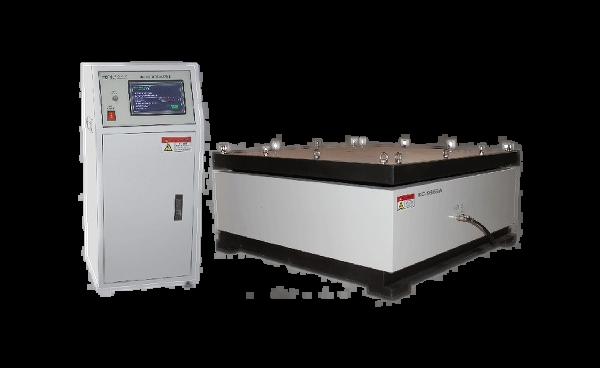

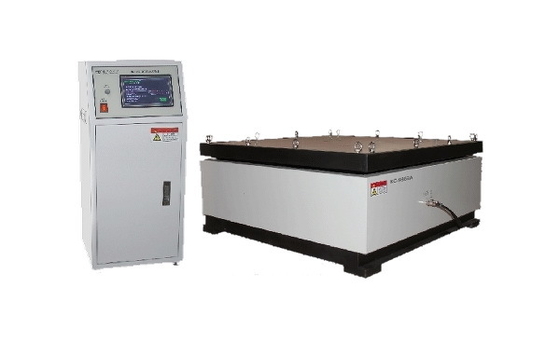

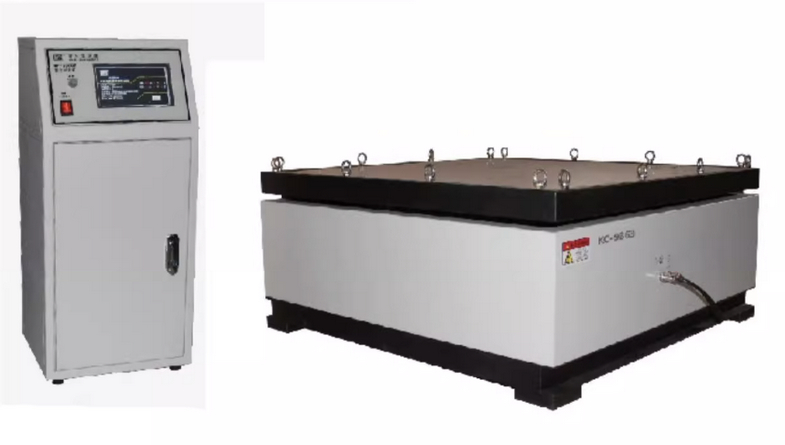

Programmable Simulation Transport Vibration Table with Touch Screen Controller KC-9363A
Brief Introduction:
The purpose of conducting field vehicle tests on products is to place packaged or unpackaged products on transport trucks to endure actual road conditions at speeds of 30-40 km/h while traveling 200-400 km on tertiary roads.
This is considered a relatively primitive testing method. The drawback of this method is that it consumes considerable human, material, and time resources, and it is also less obvious in terms of outcomes.
This simulated vehicle transport testing platform is designed to replicate the vibrational environment described above during vehicle transport. It allows for the practical conditions affecting the items to be assessed in a laboratory setting, suitable for products weighing no more than 100 kg for road transport simulation testing.
The simulation conditions include: low-level tertiary roads, mid-level road surfaces, and quartile roads, where vehicle speeds generate random vibration environments at speeds of 20-60 km/h.
It assesses the product's adaptability to withstand vehicular transport vibrations under both packaged and unpackaged conditions, and confirms the integrity of its structure.
This testing platform meets ASTM D999;
Product Features:
It uses an industrial-grade microcontroller as the control system, and the operation is straightforward.
1. The vibrational speed and the simulation time (up to 24 hours) can be set freely.
2. Synchronous silent wide-band transmission, with low noise.
3. Samples are held using quick-release rubber bands for convenient and fast operation.
4. The platform body is made from high-quality industrial channel steel, with a base equipped with high-strength vibration-damping rubber, ensuring stable operation and high load capacity.
5. Developed according to Chinese industrial standards, the rotary vibration also complies with European and American transport regulations.
Applicable to: The electronics industry, furniture, ceramics, and the packaging transport industry for testing the packaging of products.
Technical Specifications:
| Frequency range | 100~300RPM cycle/min (Adjustable) |
| Vibration mode | Rotary vibration (Vertical and horizontal) |
| Amplitude range | 25.4mm(1 inch) (±15%) meet ISTA/EN71 |
| Max .Load | 0-100KG |
| Accuracy Grade | 0.5 |
| Simulation speed |
20-60 km/h (multiple segments can be set for different speeds and test times). The multi-segment simulation program can run in cycles, with standard models allowing for 1-200 cycles adjustable at will. |
| Working Table size | 1000*1000 mm (L*W, mm) |
| Digital speed | Accuracy is not greater than ± 3 rev / min |
| Work time setting range | 0~999H99M |
| Speed display accuracy | 1RPM cycle/min |
| Motor Power | 1HP |
| Max. current | 5A |
| Power | 1 phase 220V 50Hz/60Hz, 1.2KW |
| Overall dimensions | 1070*1255*750 mm |
| Machine weight | 180kg |
| Environmental conditions | temperature: 5 ~ 40℃, relative humidity ≤ 85% |
| Speed control mode | DC speed control or AC frequency control |
