| Model: | QTY-32 | Application: | Check The Cracking, Peeling Or Other Damage Of The Coating |
|---|---|---|---|
| Diameters Of Spindle: | 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25 And 32 Mm | Testing Standards: | GB/T 6742, ISO 1519 |

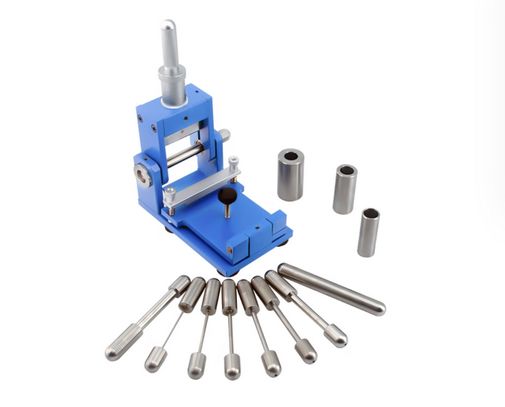

Cylindrical Bending Tester QTY-32
Brief Introduction:
Bend the coated metal substrate under a cylinder to obtain the ductility and adhesion index of the paint film under bending.
Cylindrical bending is to simply bend the test plate on a circular shaft of known diameter, and then check the cracking, peeling or other damage of the coating.
Diameters of spindle: 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 25 and 32 mm
Note: 20, 25, 32mm are axial sleeves;
Testing Standards: GB/T 6742, ISO 1519
Technical Specifications:
| Diameters of spindle | 2-32 mm |
| Board Dimension | 120×50×1 mm |
| Overall Dimension | 170×110×230 mm |
| Net Weight | 7 kg |
