| Force: | Accuracy Within ±0.5% | Test Range: | 0.5~100%F.S |
|---|---|---|---|
| Stroke: | Max 1000mm | Stop Test: | Upper And Bottom Limit |
| Capacity: | Max 500Kgf | Control: | Touch Screen Controller |
| High Light: | universal material tester,universal testing machine |
||

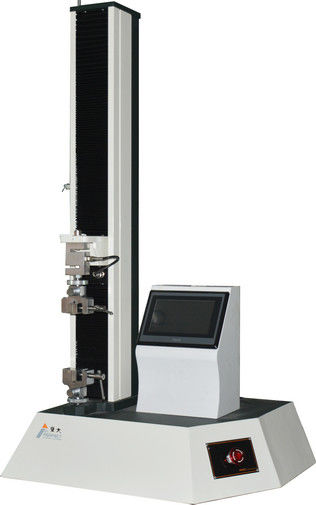

Touch Screen Controller Single Pillar Tensile Testing Machine 5KN / Material Testing Equipment
Brief Introduction:
iUTM-1176S was used in aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper products and packaging and color printing, adhesive tape, cases, handbags, textile, food, pharmaceutical and other industries.
To test physical properties of all kinds materials and finished products, semi-finished products, to buy all the different fixture do tensile, compressive strength, to pull, pressure, bending, tear, peel, adhesive force and the shear test, according to GB, ASTM, ISO, BS, DIN, JIS and other national or international standards for testing.
It is the ideal machine for factory enterprise, technical supervision departments, commodity inspection agencies, research institutes and tertiary institutions and other departments of the ideal test and research equipment.
Features:
The machine has compact structure, simple operation and comprehensive coverage, tensile, compressive, bending, folding, cutting, and other functions, and can realize a pull, pressure and other difficult test.
1.The structure of the machine adopts the advanced treatment of extruded aluminum type sealing plate of the lacquer that bake built-in high precision, low resistance, no clearance double roller screw and guide pillar, improve the efficiency of load and the rigidity structure;
2.The control system adopts panasonic digital ac server control high response frequency of the ac servo motor, guarantee the transmission system of high efficiency, smooth transmission, low noise, speed can be controlled within + / - 0.2% accuracy;
3.The microcomputer system using commercial computer as the main control machine, with our professional testing software, can complete all of the test parameters setting, working state control, data acquisition and processing analysis, result display and printing output;
4. The product is stable and reliable performance, high measurement accuracy and test software powerful, operation is simple and easy to understand.
Technical Specifications:
| Model Type | iUTM-1176S |
| Capacity | 2,5,10,20,50,100,200,500kgf (Select one) |
| Software | Windows2000/xp test software |
| Loading precision | Within ±0.5% |
| Strength parses | 1/500,000 |
| Test range | 0.5~100%F.S |
| Deformed precision | Within ±0.5% |
| Test speed range | 0.5～500mm/min,adjustable |
| Max test stroke | Max 1000mm, include grippers length |
| Test space width | 400mm |
| Unit switch | Include multi-units of measurement, can switch metric system and British system. |
| Stop test | Upper and bottom limit setting, emergency stop, force and elongation setting stop, specimen break stop. |
| Special features | Capable to perpetual extension, holding pressure and fatigue testing. |
| Option purchase | PT-211 two points elongation gripper, other test grippers |
| Dimensions | 76×44×150cm(W×D×H) |
| Weight | About 70kg |
| Motor | AC servo motor |
| Power | 1PH,AC220V,50Hz,10A |
