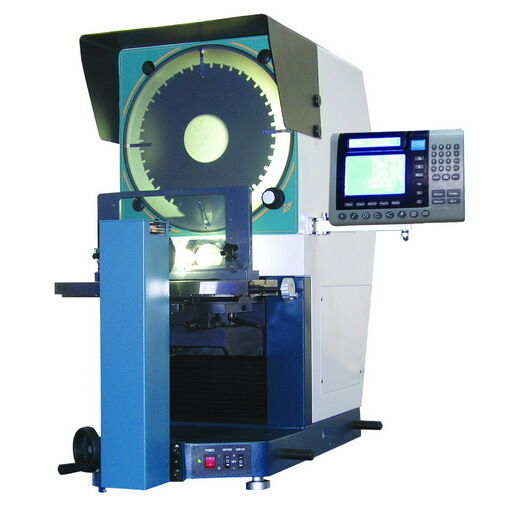

Φ400mm Horizontal Profile Projector JT26
Technical Specifications:
| Models | JT26 |
| Projection Screen | Φ400mm |
| Rotation Range | 0°~360° |
| Resolution of the rotary angle | 1′ |
| Accuracy of the rotary angle | 4′ |
| Objective Magnification | 10X, 20X, 50X, 100X |
| Objective Visual Field | φ35mm, φ17.5mm, φ7mm, φ3.5mm |
| Objective Working Distance | 88.376mm, 81.375mm, 54mm, 44.9mm |
| Error of magnification | 0.08% |
| Range of X-Z coordinate (mm) | 250*150mm |
| Y -coordinate (Focusing)(mm) | 80mm |
| Worktable Dimensions | 450*150mm |
| Resolution | 0.001mm |
| Accuracy of Instrument | (3+L/75)μm |
| Load Capacity | 5kg |
| Overall Size(mm) | 867*443*942mm |
| Transmission Lighting | 24V 150W Halogen tungsten lamp |
| Reflecting Lighting | 24V 150W Halogen tungsten lamp |
| Rated Voltage | AC110V/220V, 50/60Hz |
| Mainframe Weight | 150kg |
Main Features:
Strong general-purpose property, beautiful shape and convenient operation.
Up-down and work stage movements adopt imported V straight line guide, transmission is comfortable and convenient.
Two illuminations systems (high and low) can meet illumination requirements of different workpieces and materials
Image of screen is very clear and shapely.
Reflection illumination adopts fiber-optic transmission, so it has the features of small-volume, High-brightness and easy-operation.
Accuracy of JT26 is very high, also has a strong stability and reliability
Worktable is made of aluminum alloy material, so its weight is very light
Digital displayer uses digits on to display length and angle
Application Ranges:
The iqualitrol JT26 can test effectively profile, section and surface shapes of various complex workpieces, such as templates, punching pieces, cams, gears, forming cutters, mercerizes etc.
Widely used in workshops and measuring station of those industries: Machinery, instruments & meters, watches, moulds and electronics and so on.
