Product Details:
Payment & Shipping Terms:
|
| Force Range: | ±5 Kgf/ ±5000 Gf /±49 N /±11 Lbf | Resolution: | 0.001kgf, 1gf, 0.01N, 0.01Lbf |
|---|---|---|---|
| Accuracy: | ±0.5%FS±1Digit | Display: | 2 Reversed 4Digit LCD |
| Power Off: | Support Automatic Power Off | Backlight: | Blue Backlight |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

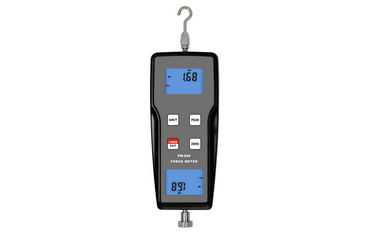

5Kgf Blue Backlight Digital Force Gauge for Textile and Auto Parts FM-204-5K
Products Profile:
The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts,
Features:
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
Specifications:
| orce Range | ±5 kgf |
| ±5000 gf | |
| ±49 N | |
| ±11 Lbf | |
| Resolution | 0.001 kgf |
| 1 gf | |
| 0.01 N | |
| 0.01 Lbf | |
| Accuracy | ±0.5%FS±1Digit |
| Unit | kgf,gf,N,Lbf |
| Measurement State | Peak Value Measurement,Real Time Measurement |
| Display | 2 Reversed 4Digit LCD |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
| Backlight | Blue Backlight |
| Safe Load | 150%FS(Buzzer Alarm Over 110%FS) |
| Power Supply | 2X1.5 AA(UM-3)Battery or 6VDC Power Supply |
| Operating | Temperature:0~40ºC |
| Conditions | Humidity:<80% |
| Surrounding | No Vibration Source or Corrosive Medium Around |
| Weight | 390g |
| Size | 211x80x36mm |
Accessories:
| Standard Accessories | Digital Force Gauge | |
| Pulling Hook | ||
| Flat Tip | ||
| Cone Tip | ||
| V-shaped Groove Tip | ||
| V-shaped Wedge Tip | ||
| Lengthening Connection Rod | Screw Rod | |
| Cap Nut | ||
| Manual | ||
| Carrying Case | ||
| Optional Accessories | Power Adapter | |
