Product Details:
Payment & Shipping Terms:
|
| Display: | Color Touch Display With A Menu-style Interface | Hardness Conversion: | Supports Conversion Among Various Hardness Values |
|---|---|---|---|
| Eyepiece: | 10X Digital Display Measuring Microscope | Lens: | 40X And 20X Objectives Can Participate In Measurements |
| Turret: | Indenter And Objective Automatically Switch | Optional: | CCD Cameras, Facilitating Measurement Analysis With Computer Software |
| Highlight: | non destructive testing machine,fruit hardness tester |
||

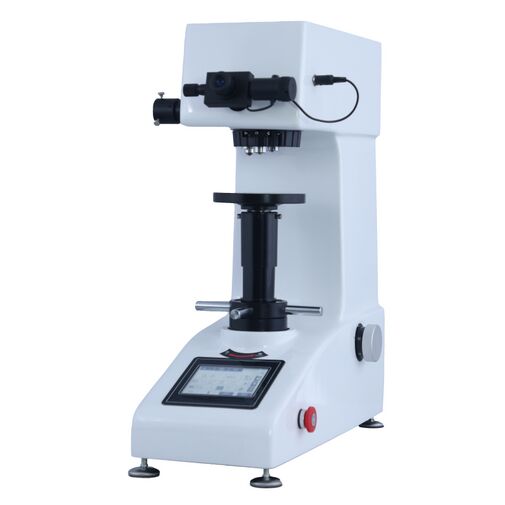

Auto Turret Digital Vickers Hardness Tester
MHVS-5BZ with Touch Screen
Brief Introduction:
The iqualitrol MHVS-5BZ adopts unique and precise design in mechanics, optics, and light source, making indentation imaging clearer and measurements more accurate.
MHVS-5BZ uses a color touch display with a menu-style interface, allowing the selection of HV or HK hardness scales on the operation panel, and automatically calculates and displays the tested hardness values. It supports conversion among various hardness values.
The MHVS-5BZ is equipped with a 10X digital display measuring microscope, and both 40X and 20X objectives can participate in measurements, expanding the measurement range and broadening the application scope.
The indenter and objective automatically switch, ensuring precise positioning and higher efficiency, and it features threaded interfaces for connecting digital cameras and CCD cameras, facilitating measurement analysis with computer software.
Technical Specifications:
| Test Forces |
MHVS-5BZ |
0.3Kgf, 0.5Kgf, 1Kgf, 2Kgf, 3Kgf, 5Kgf |
| MHVS-10BZ | 0.3Kgf, 0.5Kgf, 1Kgf, 3Kgf, 5Kgf, 10Kgf | |
| MHVS-30BZ | 1Kgf, 3Kgf, 5Kgf, 10Kgf, 20Kgf, 30Kgf | |
| MHVS-50BZ | 1Kgf, 5Kgf, 10Kgf, 20Kgf, 30Kgf, 50Kgf | |
| Hardness Conversion | Support convert among Rockwell, Superficial Rockwell, Brinell | |
| Resolution | 0. 01μm | |
| Magnification | 100x, 200x | |
| Data Output | Built-in Printer | |
| Loading Control | Automatically load, dwell, unload | |
| Net Weight | 55kg | |
| Test Space | Height: 175mm, Depth Throat: 135mm | |
| Power Supply | AC220V±5%, 50~60Hz | |
