High Precision Computer Servo Tensile Compression Testing Machine with precision guide rail

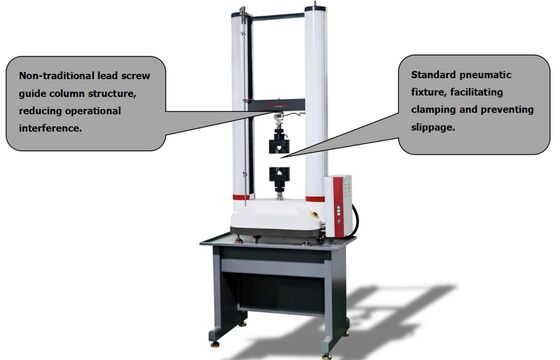

China High Precision Computer Servo Tensile Compression Testing Machine with precision guide rail supplier

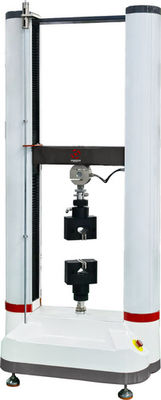

Large Image :  High Precision Computer Servo Tensile Compression Testing Machine with precision guide rail

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: iPT-1169

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Horizontal: Left And Right, 420mm Vertical: 1000mm Without Fixture
Test Speed: 0.01~2000mm / Min, Adjustable Accuracy: Better Than ± 0.5% (GB-0.5)
Input: 4 Groups Of Input; 2 Points Extension 1 Group Of Input; Power Input; Network Connection Input Capacity: Select One From 5, 10, 20, 50, 100, 200, 500, 1000, 2000kgf



High Precision Computer Servo Tensile Compression Testing Machine with precision guide rail

Model: iPT-1169

Brief Introduction:
iqualitrol iPT-1169 high-precision computer servo pull pressure testing machine is the crystallization of the ninth generation of iqualitrol research and development results.

Can test the physical properties of various materials and finished products, semi-finished products, standard with professional pneumatic clamps, can choose a variety of different clamps for tensile, compression, tensile, compression, bending, tear, peeling, adhesion, shear and other tests. GB, ISO, ASTM, BS, DIN, JIS and other national or international standards can be tested,

for the ideal testing and research equipment for various factory enterprises, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.

Suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper and color printing packaging, adhesive tape, handbags, textile fiber, food, pharmaceutical and other industries of fine research purposes.

Features summary:

           high-performance

The structure of the machine adopts German grinding level gapless ball screw and grinding and high precision guide rail, which improves the load efficiency and structural rigidity. Using daily and German full digital AC servo system, to ensure high transmission efficiency, stable transmission, low noise, speed accuracy can be controlled within ± 0.1%;

high-accuracy

Imported high-precision sensor, with an effective measurement range of 0.3%~100%F. S, the comprehensive accuracy is better than 0.3 levels

standardization

The fixture connection is standardized to quickly replace various test applicable fixtures. Special pneumatic fixture, high-grade instruments are necessary;

High wisdom

Professional software intelligent control interface, automatically complete parameter setting, working state control, data acquisition and processing analysis, result display and printing output; mouse click one-click control, one-click output test report, without tedious education and training;

gorgeous

Precision casting, combined with the elaborate spare parts processing technology, presents the exquisite atmospheric European design style of the whole machine, reflecting the unique aesthetic proposition of iqualitrol industrial design.


Software specifications:


Using windows working platform, parameter set all point selection, simple operation;
Single screen operation, no need for screen switching
The software interface has simplified Chinese, traditional Chinese and English more than 30 languages, easy to switch;
Quick and self-service regulated test form mode;
The test data can be directly displayed in the main screen, and the historical data can be imported in real time for automatic comparison;
With a variety of measurement units, the male British system can be switched, can also edit the unit system;
Data comparison of multiple curves can be performed simultaneously;
With the automatic return function;
With the automatic correction function;
With the custom-defined test method function;
With the automatic operation and analysis function of test data, it can customize the operation formula according to the need;
With the function of automatic magnification, in order to achieve the most appropriate size of the figure;
Can do tensile, compression, bending, stripping, pull, pressure, fatigue and other tests;
Equipped with an extension meter, it can accurately measure large deformation, small deformation, etc


Key technical Specifications:

model iPT-1169
Capacity selection 5,10,20,50,100,200,500,1000,2000kg either option (US Interface)
TT&C software iqualitrol independently developed the professional testing software under the Windows platform
input end 4 groups of input; 2 points extension 1 group of input; power input; network connection input
Accuracy of measuring force Better than ± 0.5% (GB-0.5)
Detective resolution 1/1,000,000
Test speed range 0.01~2000mm / min, can be set
Displacement resolution 0.00004mm
Test maximum trip 1000mm without a fixture
Effective test space Left and right, 420mm
Unit switch Multiple units of measurement, including international units
Downtime method Upper and down, mechanical limit safety setting, emergency stop key, program strength and elongation setting, specimen damage sensing
standard layout 1 payment of standard pneumatic fixture, 1 set of software and data cable, 1 power line of equipment, 1 operation manual, 1 product certificate, 1 product warranty card
Choose and buy configuration 1 printer and various test fixtures
Unit size / weight About 710 4201600 (WDH) / approximately 140kg
motive power AC servo motor
control method Computer measurement and control system



Load measurement accuracy:
The ± 0.5% of the presented value meets or exceeds the following international standards:
ASTM E-4, BS 1610, DIN 51221, ISO 7500 / 1, EN10002-2, JIS B7721, JIS B7733,

Speed accuracy:
For ± 0.1% of the set speed

Environmental requirements:
Use environment: + 10~30℃ Storage environment: -40~70℃ Humidity: 10% ~ 90% RH.


The self-developed professional test software conforms to GB228-87, GB228-2002 and other more than 30 national standards, at the same time, GB, ISO, JIS, ASTM, DIN and users provide a variety of standards for testing and data processing, and has good scalability.
