| HV-50AHY: | Force 50Kgf, Weights Loading Auto Turret Analogue Eyepiece | HV-30AHY: | Force 30Kgf, Weights Loading Auto Turret Analogue Eyepiece |
|---|---|---|---|
| HV-10AHY: | Force 10Kgf, Weights Loading Auto Turret Analogue Eyepiece | HV-5AHY: | Force 5Kgf, Weights Loading Auto Turret Analogue Eyepiece |

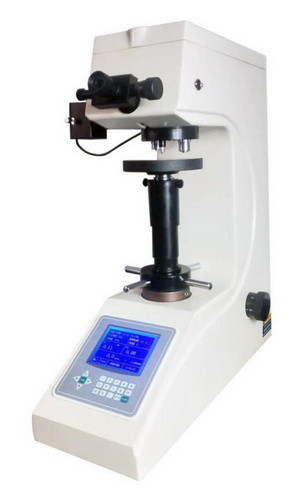

Weights Loading Analogue Eyepiece Auto Turret Vickers Hardness Tester LCD Screen
Model: HV-5AHY
product description:
● IQUALITROL HV-5/10/30/50AHY automatic turret Vickers hardness tester, using high-speed ARM processor, intuitive display, friendly human-computer interaction, and easy operation;
● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
● Equipped with automatic turret function;
● Convenient operating system, which can automatically convert the unit of the full hardness scale;
● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;
● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;
● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;
● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.
Main Parameters:
| Model | HV-5/10/30/50AHY | ||||
| Range of Measurement | 5-5000HV | ||||
| Test Force | Loading Mode | WEIGHTS Loading | |||
| HV-5AHY |
0.3,0.5,1.0, 2.0,3.0,5.0kgf |
||||
| HV-10AHY |
0.3,0.5,1.0, 3.0,5.0,10kgf； |
||||
| HV-30AHY |
0.3,0.5,1.0, 5.0,10.0,30.0kgf |
||||
| HV-50AHY |
1.0,5.0,10.0, 20.0,30.0,50.0kgf. |
||||
| Data Entry Mode | MANUAL | ||||
| Turret Mode | AUTO TURRET | ||||
| Maximum Height of Specimen | 200mm | ||||
| Distance between Indenter Center and Wall | 130mm | ||||
| Objective | HV-5/10/30AHY serial |
10×,40×
|
HV-50AHY | 10×,20× | |
| Magnifications | 100×,400× | 100×,200× | |||
| Eyepiece Measure Resolution | 0.025μm | 0.1μm | |||
| Hardness Resolution | 0.1HV | ||||
| Power Supply | AC 220V,50Hz | ||||
| Outline Dimension | 620*330*650mm | ||||
| Weight | 75kg | ||||
Accessories Box:
| Micrometer Eyepiece | One PC | The Small Anvil | One PC |
| The Big Anvil | One PC | Diamond Vickers Indenter | One PC |
| V-type Anvil | One PC | Standard Vickers Hardness Block | Two Blocks |
