| Optic Path: | Dual Light Channels (eyepieces And CCD Camera Channels) | Turret: | Automatic Turret, Indenter And Objective |
|---|---|---|---|
| Focus Structure: | Side Lifting Focus Structure | Display: | Large LCD |
| Test Space: | Vertical 110 * Throat 85mm | Objective: | 10×, 40× |

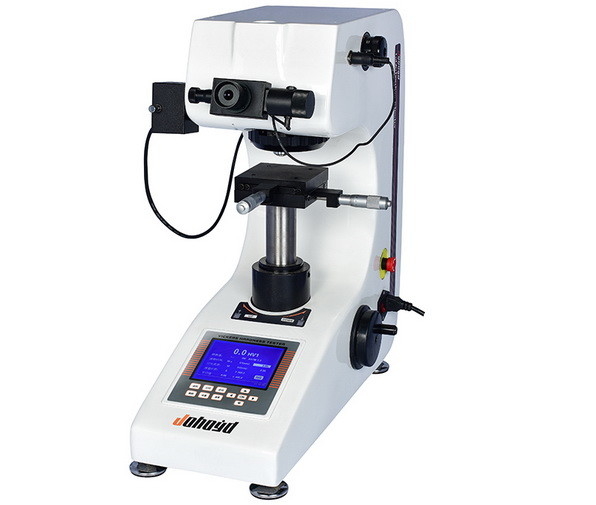

Side Lifting Structure Digital Display Automatic Turret Microhardness Testing Machine
Model: HVS-1000ZLS
Product Description:
Iqualitrol HVS-1000ZLS Digital automatic turret type micro hardness tester can meet the basic Vickers hardness test requirements.
The upgraded digital micrometer eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately.
The upgraded side lifting structure has higher precision, and the lifting platform is more stable during testing. It is not necessary to focus again after the test is completed. The LCD large-screen display is convenient for observation, test conditions, and the test process is straightforward.
Technical Parameters:
| Model | HVS-1000ZLS |
| Micro hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Display | Large LCD |
| Test force | 10, 25, 50, 100, 200, 300, 500, 1000gf |
| Loading control | Automatic (load/dwell/unload) |
| Dwell Time | 5 to 60 seconds |
| Test force selection | External selector knob, test force is automatically displayed on the LCD screen |
| Objectives | 10×, 40× |
| Optical channel | Dual light channels (eyepieces and CCD camera channels) |
| Optical system | 1.Automatic digital encoder; 2.The total magnification (μm): 100 × (observation), 400 × (measurement); 3.measuring range (μm): 200; 4.Resolution (μm): 0.01 |
| Hardness measurement range | (5-3000) HV |
| XY test platform | Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
| Maximum height of specimen | 110mm |
| Throat depth | 85mm (distance from the center line of the indenter to the wall) |
| Data output | Reserve built-in mini printer interface (RS232 serial interface), optional installation |
| Voltage | AC220V/50HZ |
| Weight | 35kg |
| Dimension | 540×200×530mm |
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, and it is visually comfortable. Long-time operation is not easy to fatigue operators.
2. Industrial display LCD large-screen display can display test method, test force, measuring indentation length, hardness value, converted hardness value, test force holding time, number of measurements and can be typed into year, month, date, test results and data processing, etc.
3. Cast aluminum shell molding, with stable structure and is not easy to be deformed, pure white car paint high grade, anti-scratch ability, using for many years is still bright as new;
4. HVS-1000ZLS model can be realistic: the length of the measurement directly confirms the hardness value.
5. The HVS-1000ZLS model can be realized: observation-test-measurement position switching is done by the automatic turret.
6. The side-shake lifting system greatly improves the stability and accuracy, and does not need to focus again after the test is completed.
The main purpose and scope of application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafers, ceramic materials
Standard configuration:
| 1.Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1) | 2.Test platform, weight, microscope accessory box; |
| 3.Weights x6 | 4.Weight bar x1 |
| 5.Cross table x1 | 6.Sheet clamping table x1 |
| 7.Flat mouth clamping table x1 | 8.Filament holding table x1 |
| 9.Level meter x1 | 10.Screwdriver x2 |
| 11.Horizontal adjustment screws x4 | 12.External power cord x1 |
| 13.10× Digital Micrometer Eyepieces x1 | 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each ) |
| 15.Fuses (1 A) x2 | 16.Product certification x1 |
| 17.Product Instruction Manual x1 | 18.Dust cover x1 |
Note:
1. Optional built-in printer, measurement data, a key print, can also upload the computer.
2. Optional hardness meter measurement software can eliminate manual error, computer operation, improve efficiency and accuracy.
