Economical Manual Turret Vickers Hardness Tester Mechanical Eyepiece

China Economical Manual Turret Vickers Hardness Tester Mechanical Eyepiece supplier

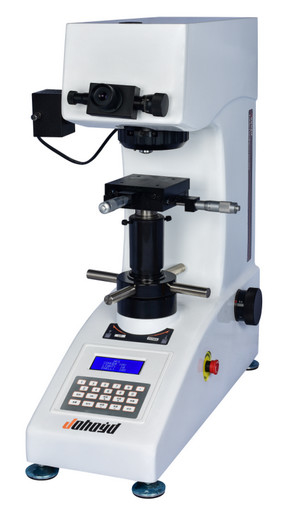

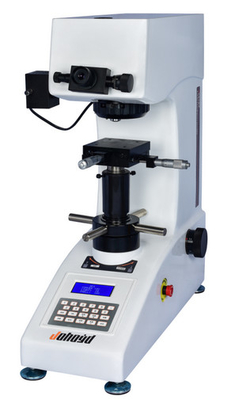

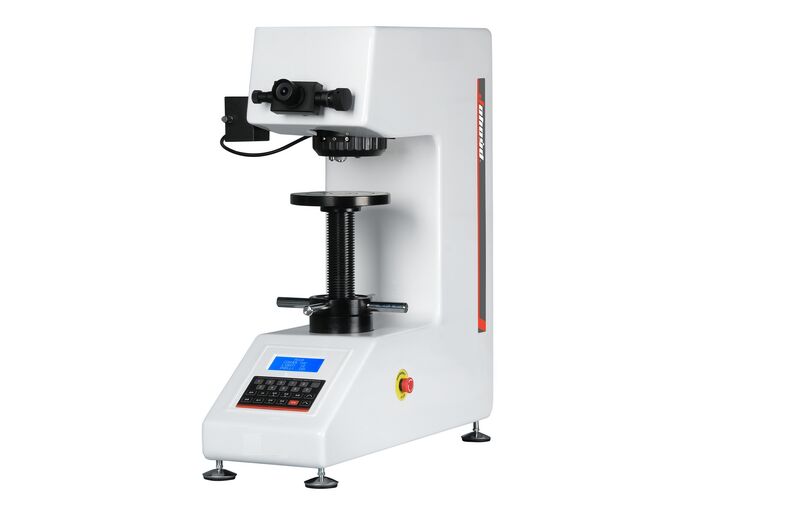

Large Image :  Economical Manual Turret Vickers Hardness Tester Mechanical Eyepiece

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HV-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets per Month
Detailed Product Description
HV-50: Max Force 50Kgf, Mechanical Eyepiece, Manual Turret HV-30: Max Force 30Kgf, Mechanical Eyepiece, Manual Turret
HV-10: Max Force 10Kgf, Mechanical Eyepiece, Manual Turret HV-5: Max Force 5Kgf, Mechanical Eyepiece, Manual Turret
Loading Control: Automatic (load/dwell/unload) Weight Loading Test Space: Vertical 163 * Throat 130mm


Economical Manual Turret Vickers Hardness Tester Mechanical Eyepiece


Model: HV-5

Product description:


Iqualitrol Manual turret Vickers hardness tester meets basic Vickers hardness test requirements, and upgraded control systems provide more measurements.


Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;


Technical Parameters:

Model HV-5/10/30/50 (Number stands for max test force)

5-digit hardness value, 4-digit diagonal length (D1, D2),

Dwell time, number of tests, average, standard deviation

Loading control Automatic (load/hold/uninstall)
Dwell time 1~99 seconds
Optical system

Objectives: 10×, 20× (Customizable 40X)

Eyepiece Magnification: 10×

Total magnification (μm): 100×, 200×

Measuring range: 800μm 400μm

Resolution :1μm 0.5μm

Hardness measurement range (5-3000)HV
Optical channel Dual light channels (eyepieces and CCD camera channels)
XY test stand (optional)

Size (mm): 100×100

Travel range (mm): 25×25

Minimum reading (mm): 0.01

Maximum height of specimen 165mm
Throat depth 130mm (distance from the center line of the indenter to the wall)
Executive standard

GB/T4340.2 Chinese Standard,

JJG151 Inspection Rule

voltage AC220V/50HZ
Overall size 585×200×630mm
Weight 42Kg



Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.


2. On the industrial display screen, the hardness value can be visually displayed, the hardness can be converted, the test method, the test force, the time of the charge and the number of measurements, and the test process can be intuitively understood.


3, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;


Standard configuration:

Host computer 1
weight 3
Large and medium "V" test benches 1
Horizontal adjustment screw 4
Power cable 1
10X digital microscope eyepiece 1
Vickers hardness block 2
Spare fuse 2A 2
Product Certificate 1
Instruction Manual 1

Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
