| HV-50Z: | Max Force 50Kgf, Mechanical Eyepiece, AUTO Turret | HV-30Z: | Max Force 30Kgf, Mechanical Eyepiece, AUTO Turret |
|---|---|---|---|
| HV-10Z: | Max Force 10Kgf, Mechanical Eyepiece, AUTO Turret | HV-5Z: | Max Force 5Kgf, Mechanical Eyepiece, AUTO Turret |
| LOADING CONTROL: | Automatic (load/dwell/unload) Weight Loading | TEST SPACE: | Vertical 163 * Throat 130mm |

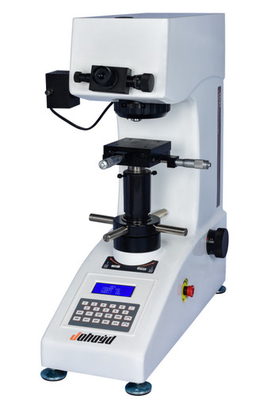

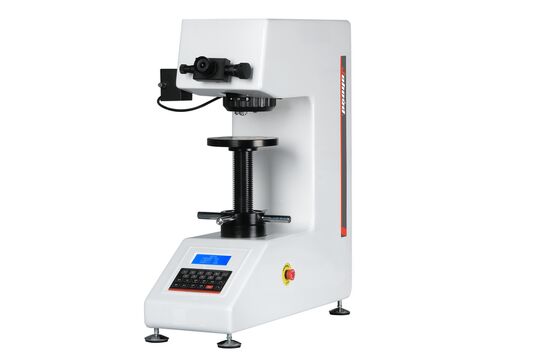

Basic Type Automatic Turret Vickers Hardness Tester with
Adjustable Brightness Illumination
Model: HV-5Z
Product description:
Iqualitrol AUTO turret Vickers hardness tester meets basic Vickers hardness test requirements, and upgraded control systems provide more measurements.
Main application scope:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;
2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;
3, glass, wafers, ceramic materials;
Technical Specifications:
| Model |
HV-5Z/10Z/30Z/50Z (Number stands for max test force) |
| display |
5-digit hardness value, 4-digit diagonal length (D1, D2), Dwell time, number of tests, average, standard deviation |
| Loading control | Automatic (load/hold/uninstall) |
| Dwell time | 1～99 seconds |
| Optical system |
Objectives: 10×, 20× (Customizable 40X) Eyepiece Magnification: 10× Total magnification (μm): 100×, 200× Measuring range: 800μm 400μm Resolution :1μm 0.5μm |
|
Hardness measurement range |
(5-3000)HV |
| Optical channel |
Dual light channels (eyepieces and CCD camera channels) |
| XY test stand (optional) |
Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
|
Maximum height of specimen |
165mm |
| Throat depth | 130mm (distance from the center line of the indenter to the wall) |
| Executive standard |
GB/T4340.2 Chinese Standard, JJG151 Inspection Rule |
| voltage | AC220V/50HZ |
| Overall size | 585×200×630mm |
| Weight | 42Kg |
Main Functions and Features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope with adjustable brightness and comfortable vision.
2. On the industrial display screen, the hardness value can be visually displayed, the hardness can be converted, the test method, the test force, the time of the charge and the number of measurements, and the test process can be intuitively understood.
3, Cast aluminum shell molding, the structure is stable and not deformed, high-grade automotive paint, anti-scratch ability, use for many years is still bright as new;
Standard configuration:
| Host computer | 1 |
| weight | 3 |
| Large and medium "V" test benches | 1 |
| Horizontal adjustment screw | 4 |
| Power cable | 1 |
| 10X digital microscope eyepiece | 1 |
| Vickers hardness block | 2 |
| Spare fuse 2A | 2 |
| Product Certificate | 1 |
| Instruction Manual | 1 |
Remarks: Optional hardness meter measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate.
