| JT20A: | Vertical Φ300mm Profile Projector | Fuselage Cover: | Sheet Metal Is Adopted For Easy Process And Light Weight |
|---|---|---|---|
| Focus: | Up And Down System Of Projecting Box | Working Stage: | Elaborate Structure, Transmission Is Very Comfortable And Portable |
| Halogen Bulb: | 24V 150W Halogen Bulb Is Adopted For Transmission & Reflection Illumination | Accuracy: | High Measuring Accuracy 3+L/75um And Operation Efficiency |

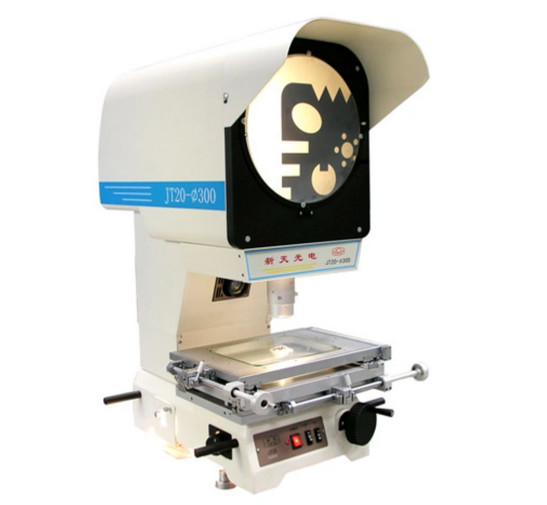

Vertical JT20A Φ300mm Profile Projector with halogen illumination
Usages:
This instrument can measure surface and profile of different workpieces with complicated shapes efficiently, such as templates, punched pieces, gears, threads, formed milling cutters etc all kinds of Cutters, tools and parts. It is used widely used in measuring room and workshops for those industries Of machinery-making, instruments, watches etc.
Features:
-Sheet metal is adopted for easy process and light weight.
-Up and down system of projecting box, adjustment rang of Z coordinate is large.
-High accurate working stage has a newly & elaborate structure, transmission is very comfortable and Portable.
-Large working table, measuring rang together with working distance on object ( three kinds of working Tables are available for option).
-24V 150W halogen bulb is adopted for transmission & reflection illumination, axial flow fan is used to Cool forcibly.
-High measuring accuracy and operation efficiency
Technical Specifications:
