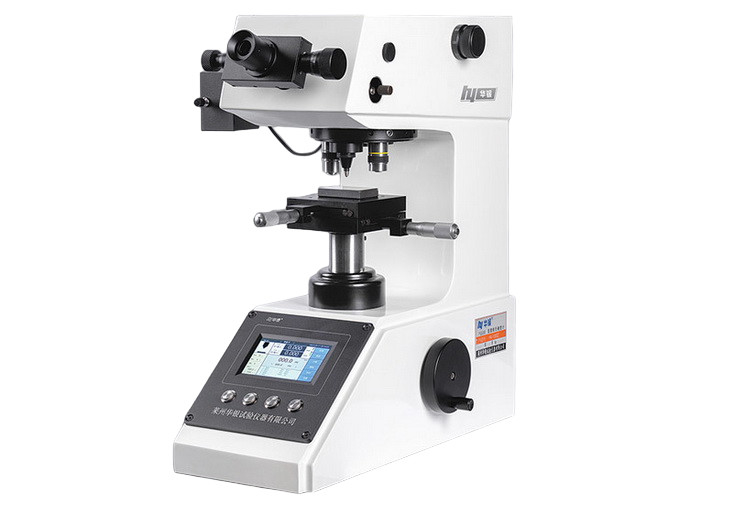

Magnification 400X Auto Turret Micro Vickers Hardness Tester IQUALITROL HV-1000Z

Magnification 400X Auto Turret Micro Vickers Hardness
Tester IQUALITROL HV-1000Z

Main features:

● Automatic turret; frictionless spindle, high test force accuracy;

● High-precision optical measurement system, precision coordinate test bench;

● Adopt ARM high-speed processor, LCD touch screen;

● Dynamic display of the indenter during loading and unloading, real-time observation of the test status;

● The screen can display the test force, indentation length, dwell time, number of measurements, etc.;

● The test process is automated, the operation is simple, and there is no human error;

● Automatic correction of the hardness value of the concave and convex surface;

● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;

● Optional Knoop indenter for Knoop hardness test;

● IQUALITROL self-developed Vickers measurement system is optional, which can realize online function through data line, control all actions of hardness tester on computer, automatically capture indentation image, automatically measure hardness value, automatically generate hardness curve, and automatically calculate effective hardened layer depth;

● Accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E384.

Application range:

● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;

● Glass, ceramics, agate, gemstones, etc.;

● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenched hardened layer;

● Microscopic Vickers hardness measurement of small parts such as thin plates and thin sheets.

Technical Specifications:
