HVS-1000B: | Manual Turret | HVS-1000A: | Automatic Turret |
---|---|---|---|
Optical System: | High-precision Optical Measurement System, Precision Coordinate Test Bench | Test Process: | Automated, The Operation Is Simple, And There Is No Human Error |
Data Output: | Equipped With RS232 Data Interface | Executive Standard: | GB/T4340.2 ISO6507-2 And American ASTM E384 |

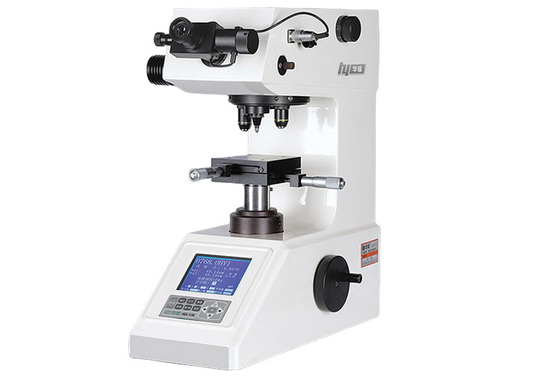

Precision Optical System Digital Micro Vickers Hardness
Tester with Large LCD Screen HVS-1000A
Main features:
● HVS-1000A is automatic turret;
● HVS-1000B is manual turret;
● Frictionless spindle, high test force accuracy;
● High-precision optical measurement system, precision coordinate test bench;
● Conversion of various hardness values;
● The test process is automated, the operation is simple, and there is no human error;
● Equipped with RS232 data interface;
● Knoop indenter can be selected for Knoop hardness test;
● IQUALITROL image measurement system can be selected;
● The accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E384.
Application range:
● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;
● Glass, ceramics, agate, gemstones, etc.;
● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenching hardened layer;
● Microscopic Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical Specifications:
Model | Micro Vickers Hardness Tester IQUALITROL HVS-1000A/B |
Scales | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
Test Force |
0.098, 0.2452, 0.4903, 0.9807, 1.961, 2.942, 4.904, 9.807(N) 10, 25, 50, 100, 200, 300, 500, 1000(gf) |
Force Change |
by rotating force knob to select test force and displays on touch screen |
Loading Control | Automatic loading, dwell, unloading |
Turret | Auto Turret (HVS-1000A) |
Display | touch screen |
Dwell Time | 1~60 seconds, adjustable, |
Test Modes | HV/HK |
Vickers Hardness Range |
5-3000HV |
Test Space | Height 75mm, depth throat 110mm |
Optic System |
Objectives: 10x, 40x, step 0.03μm Total magnifications: 100x, 400x, range 0~200μm |
XY Test Anvil |
Dimension: 100×100(mm), Travel: 25×25(mm), resolution: 0.01mm |
Illumination | 12V/20W, lightness adjustable |
Power Supply | AC220V/50Hz, power consumption: 100W |
Weight and Dimension | 470×320×510mm, weight: 40KG |
