Built-in Printer USB Port Digital Vickers Hardness Tester IQUALITROL HVS-5Z with Mass Storage

China Built-in Printer USB Port Digital Vickers Hardness Tester IQUALITROL HVS-5Z with Mass Storage supplier

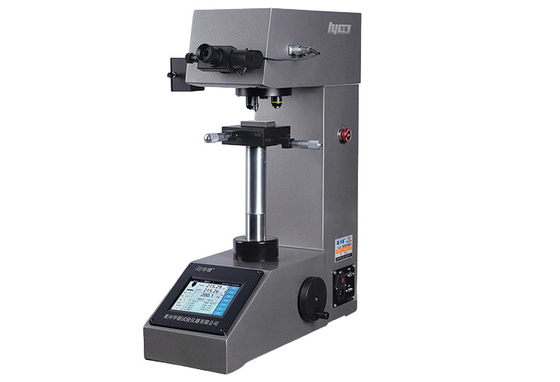

Large Image :  Built-in Printer USB Port Digital Vickers Hardness Tester IQUALITROL HVS-5Z with Mass Storage

Product Details:

Brand Name: iqualitrol
Model Number: HVS-5Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
HVS-5Z: Test Force 5kgf, Objectives 10X , 40X HVS-10Z: Test Force 10kgf, Objectives 10X , 20X
HVS-30Z: Test Force 30kgf, Objectives 10X , 20X HVS-50Z: Test Force 50kgf, Objectives 10X , 20X
Data Process: With USB And RS232 Interfaces, Convenient For Users To Process Data Touch Screen: Display Test Force, Indentation Length, Dwell Time, Number Of Measurements



Built-in Printer USB Port Digital Vickers Hardness Tester
IQUALITROL HVS-5Z with Database Storage



Main Features:

● Automatic turret; frictionless spindle, high test force accuracy;

● Electronic force, fully automatic closed-loop loading control system;



● High-precision optical measurement system, precision coordinate test bench;

● Adopt ARM high-speed processor, 5.6-inch LCD touch screen;



● Dynamic display of time-force curve during loading and unloading process;

● The screen can display test force, indentation length, dwell time, number of measurements, etc.;



● The test process is automated, the operation is simple, and there is no human error;

● Automatic correction of concave and convex surface hardness value;



● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;



● Equipped with a micro printer, the test results can be printed directly;

● Knoop indenter can be selected for Knoop hardness test;



● IQUALITROL self-developed Vickers vision measurement system can realize online function through data line, control all actions of hardness tester on computer, automatically capture indentation image, automatically measure hardness value, automatically generate hardness curve, automatically calculate effective hardening layer depth, and measure fracture toughness of cemented carbide;



● Accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E92.



Application range:

● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;

● Cemented carbide, glass, ceramics, agate, gemstones, etc.;



● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenching hardened layer;

● Vickers hardness measurement of small parts such as thin plates and thin sheets.



Technical Specifications:

Model HVS-5Z HVS-10Z HVS-30Z HVS-50Z
Test Force

1.961, 2.942,

4.904, 9.807,

19.61, 24.52,

29.42, 49.04 (N)

2.942, 4.904,

9.807, 19.61,

24.52, 29.42,

49.04, 98.07 (N)

4.904, 9.807,

19.61, 24.52,

29.42, 49.04,

98.07, 196.1,

294.2 (N)

9.807, 19.61,

24.52, 29.42,

49.04, 98.07,

196.1, 294.2,

490.4 (N)

0.2, 0.3, 0.5,

1, 2, 2.5,

3, 5 (kgf)

0.3, 0.5,1, 2,

2.5, 3,

5, 10 (kgf)

0.5, 1,2, 2.5,

3, 5, 10,

20, 30 (kgf)

1, 2, 2.5,

3, 5, 10, 20,

30, 50 (kgf)

Hardness Range 5-3000HV 5-3000HV 5-3000HV 5-3000HV
Loading Control Automatic Loading, Dwell, Unloading
Turret Automatic Turret
Data Output Built-in Printer, USB, RS232 ports
Objectives 10X , 40X 10X , 20X 10X , 20X 10X , 20X
Eyepieces Digital Measuring Eyepiece 10X
Total Magnifications 100X , 400X 100X , 200X 100X , 200X 100X , 200X
Resolution 0.0625μm 0.125μm 0.125μm 0.125μm
Dwell Time 1~99s 1~99s 1~99s 1~99s
Illumination Halogen light source

Max Height

of Specimen

210mm 210mm 210mm 210mm
Depth Throat 130mm 130mm 130mm 130mm
Power Supply AC220V,50Hz
executive standard GB/T 4340.2,ISO 6507-2,ASTM E92
Dimension 560×310×660(mm)
Weight 75kg
