Product Details:
Payment & Shipping Terms:
|
| 310HVS-5: | Manual Turret, Max Force 5kgf | Test Space: | Height 75mm, Depth Throat 110mm |
|---|---|---|---|
| Display: | LCD Display Interface; High-precision Optical Measurement System | XY Test Anvil: | Dimension: 100×100(mm), Travel: 25×25(mm), Resolution: 0.01mm |
| Loading Mode: | Weights Loading, High Test Force Accuracy | Optic System: | Total Magnifications: 100x, 400x, Range 0～200μm |

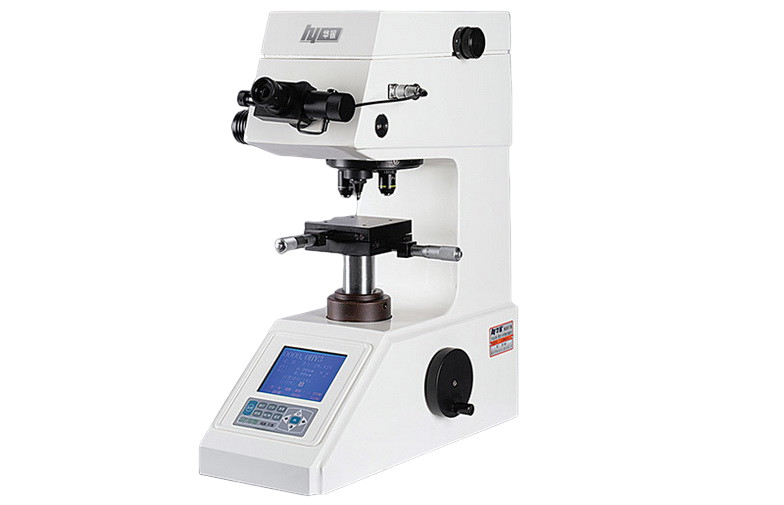

Low Load Vickers Hardness Tester IQUALITROL
310HVS-5 with RS232 Interface
Main Features:
● Automatic turret (for 310HVS-5Z), frictionless spindle;
● Weights loading, high test force accuracy;
● Test force covers micro Vickers and Vickers test requirements;
● LCD display interface; high-precision optical measurement system;
● Automated test process, simple operation, no human error;
● Equipped with precision X-Y test table;
● Equipped with RS232 interface;
● Equipped with micro printer, can directly print test results;
● Optional Knoop indenter for Knoop hardness test;
● Accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E92.
Application range:
● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;
● Cemented carbide, glass, ceramics, agate, gemstones, etc.;
● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenching hardened layer;
● Vickers hardness measurement of small parts such as thin plates and thin sheets.
Technical Specifications:
| Model | Vickers Hardness Tester IQUALITROL 310HVS-5 |
| Scales | HV0.2, HV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5 |
| Test Force |
1.961, 2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04(N) 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5(Kgf) |
| Force Change |
by rotating force knob to select test force and displays on touch screen |
| Loading Control | Automatic loading, dwell, unloading |
| Turret | Manual Turret 310HVS-5, Auto Turret (310HVS-5Z) |
| Display | LCD Display |
| Dwell Time | 1~60 seconds, adjustable, |
| Test Modes | HV/HK |
|
Vickers Hardness Range |
5-3000HV |
| Test Space | Height 75mm, depth throat 110mm |
| Optic System |
Objectives: 10x, 40x, step 0.03μm Total magnifications: 100x, 400x, range 0～200μm |
| XY Test Anvil |
Dimension: 100×100(mm), Travel: 25×25(mm), resolution: 0.01mm |
| Illumination | 12V/20W, lightness adjustable |
| Power Supply | AC220V/50Hz, power consumption: 100W |
| Weight & Dimension | 470×320×560mm, weight: 60KG |
