Product Details:
Payment & Shipping Terms:
|
| CWJ: | Non-digital, For Basic Vickers Hardness Testers | CWJS: | Digital Type, For Advanced Vickers Hardness Testers |
|---|---|---|---|
| Magnification: | 10X, 15X, 20X | Field Of View: | 16mm, 12.5mm, 12mm |

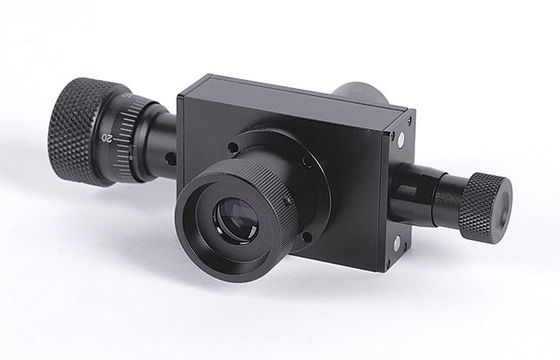

Eyepiece for Vickers Hardness Indentation Diagonal Measurement
Main Features:
Used for iqualitrol Vickers and Micro Vickers Indentation diagonal measurement
CWJ is non-digital, for basic Vickers hardness testers, need to manually input measuring length, then get hardness result;
CWJS is digital type, for advanced Vickers hardness testers, can directly display hardness result by click button on eyepiece.
Technical Specifications:
| Model | CWJ-10 | CWJS-10 | CWJ-15 | CWJS-15 | CWJS-20 |
| Magnification | 10X | 10X | 15X | 15X | 20X |
| Field of View(mm) | 16 | 16 | 12.5 | 12.5 | 12 |
| Dimension(mm) | 143x45x98 | 158x45x100 | 150x45x80 | 158x45x80 | 180x50x80 |
| Weight(kg) | 0.35 | 0.42 | 0.35 | 0.39 | 0.45 |
