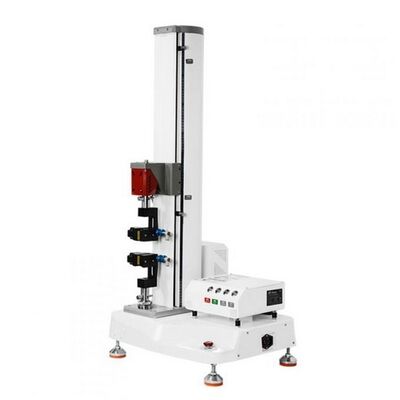

Computer Type Servo Tensile Compression Testing Machine iUTM-1176G

Computer Type Servo Tensile Compression Testing Machine iUTM-1176G

Brief Introduction:

The iqualitrol iUTM-1176G computer servo tension and pressure testing machine is equipped with a new transmission structure, running smoothly and without noise.

iUTM-1176G adopts customized high-precision sensors, ensuring force measurement accuracy, and is particularly suitable for the technical research and development of various adhesive materials.

The instrument can be equipped with different fixtures for 180 degrees Peel test, 90 degrees Peel test, T-shaped peel test, and floating roller peel test (applicable to high-strength adhesives) can also be used to test the tensile shear strength, splitting strength, and other tests of adhesive products, which can meet different testing standards.

Technical Specifications:

Main Features:

High-performance, the machine structure adopts gapless ball screw and high stiffness guide column, which improves the load efficiency and structural rigidity. Using the full digital AC servo system, to ensure the high transmission efficiency, stable transmission, low noise, speed accuracy can be controlled within ± 0.2%;

High-accuracy, customized high-precision sensors with an effective measurement range of 0.5% to 100% F.S, with a comprehensive accuracy better than level 0.5;

Standardization, Grip connection standardization, can quickly replace a variety of test applicable fixtures;

High wisdom, Professional software intelligent control interface, automatically complete parameter setting, working state control, data acquisition and processing analysis, result display and printing output; mouse click one-click control, one-click output test report, without tedious education and training; One click automatic calibration ensures the accuracy and consistency of test data.

Gorgeous, precision casting, combined with finely crafted spare parts processing technology, presents the exquisite and atmospheric European design style of the entire machine.

Software Specifications:

Professional test software complies with GB228-87, GB228-2002 and other more than 30 national standards, and can provide various standards according to GB, ISO, JIS, ASTM, DIN and users for testing and data processing, and has good scalability.

Using windows working platform, parameter set all point selection, simple operation;

Single screen operation, no need for screen switching;

The test form mode can be regulated by itself;

Test data can be called directly in the main screen; Data comparison of multiple curves can be performed simultaneously;

With the automatic return function; automatic correction function; custom-defined test method function;

With the test data operation and analysis function;

With the function of automatic magnification, in order to achieve the most appropriate size of the figure;

Can do tensile, compression, bending, stripping, pull, pressure, fatigue and other tests.
