| Force Accuracy: | Better Than ±0.3% | Test Space: | Left - Right 420mm |
|---|---|---|---|
| Application: | Test The Physical Properties Of Various Materials, Finished Products, And Semi-finished Products | Test Modes: | Tensile, Compression, Holding Tension, Holding Compression, Bending, Tearing, Peeling, Adhesion, And Shear Tests |
| Precision Sensor: | Effective Measuring Range Of 0.3%–100% F.S | Test Software: | Automatically Complete Parameter Setting, Working State Control, Data Acquisition And Processing Analysis |

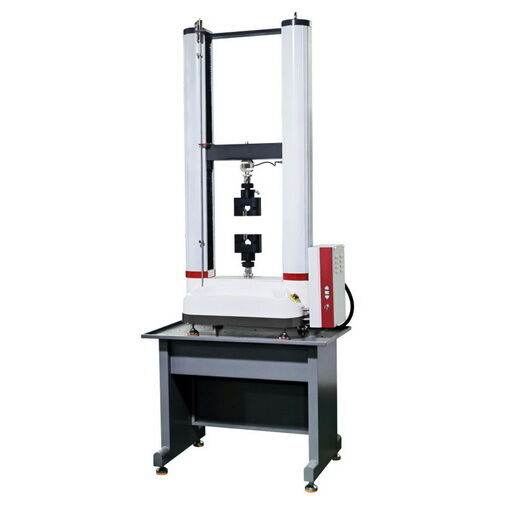

High Precision Computer Servo Tensile Compression Testing Machine iUTM-1169
Brief Introduction:
The iqualitrol iUTM-1169 High Precision Computer Servo Tensile & Compression Testing Machine can test the physical properties of various materials, finished products, and semi-finished products.
iUTM-1169 equips with a standard professional pneumatic fixture, it supports optional fixtures for tensile, compression, holding tension, holding compression, bending, tearing, peeling, adhesion, and shear tests.
The iqualitrol iUTM-1169 complies with national and international standards such as GB, ISO, ASTM, BS, DIN, and JIS for testing, making it an ideal inspection and research device for factories, technical supervision departments, commodity inspection agencies, research institutes, universities, and other departments.
It is suitable for precision research applications in industries including aerospace, petrochemical, machinery manufacturing, metal materials and products, wires and cables, rubber, plastics, paper products, color printing packaging, adhesive tapes, luggage, handbags, textile fibers, food, and pharmaceuticals.
Technical Specifications:
| Model | iUTM-1169 |
| Capacity Selection | 5, 10, 20, 50, 100, 200, 500, 1000, 2000kg (Select one; Japan NTS) |
| Input End | load cells input , two point extension 1 group input, power input; Internet port input |
| Accuracy of measuring force | Better than ±0.3% |
| Detective resolution | 1/1,000,000 |
| Test Speed Range | 0.01～2000mm/min, can be set |
| Displacement Resolution | 0.00004mm |
| Test maximum trip | 1000mm (excluding fixtures) |
| Effective Test Space | Left & right 420mm |
| Unit switch | Multiple measurement units including international units |
| Shutdown method | Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing |
| Standard Item | Standard pneumatic fixture ×1 set; Software and data cable ×1 set; Equipment power cord ×1; Operation Manual ×1; Product Certificate ×1; Product Warranty Card ×1 |
| Optional Item | Printer ×1; Various test fixtures |
| Dimensions /Weight | About 710 × 420 × 1600 (W×D×H) / About 140kg |
| Motor power | AC servo motor |
| Control Method | Computer measurement and control system |
Main Features:
High Performance, the machine structure adopts German-made precision-ground zero-backlash ball screws and high-precision guide rails, enhancing load efficiency and structural rigidity. It utilizes Japanese- and German-made fully digital AC servo systems, ensuring high transmission efficiency, smooth operation, low noise, and speed accuracy controllable within ±0.1%.
High Precision, Imported high-precision sensors with an effective measuring range of 0.3%–100% F.S. and overall accuracy better than Class 0.3.
Standardization, Standardized fixture connections enable quick replacement of various test fixtures. Dedicated pneumatic fixtures are essential for high-end instruments.
High Intelligence, Professional software with an intelligent control interface automatically completes parameter setting, operational state control, data acquisition and processing, result display, and print output. One-click mouse operation for testing and report generation eliminates the need for complex training.
High Aesthetics, precision casting combined with meticulously crafted parts processing showcases the exquisitely refined European design style of the whole machine, embodying Sinowon’s unique industrial design aesthetic philosophy.
