Product Details:
Payment & Shipping Terms:
|
| IUTM-8170: | Touch Screen Type | IUTM-8170B: | Computer Software |
|---|---|---|---|
| Test Accuracy: | 1/200000 Force Value Resolution, And Deformation Measurement Resolution Up To 0.0001mm | Transmission Mechanism: | High-precision, Clearance Free Ball Screws And Timely Gauge Belts |
| Test Stroke: | 1000mm, Excluding Grips | Test Space: | Front And Back 120mm |

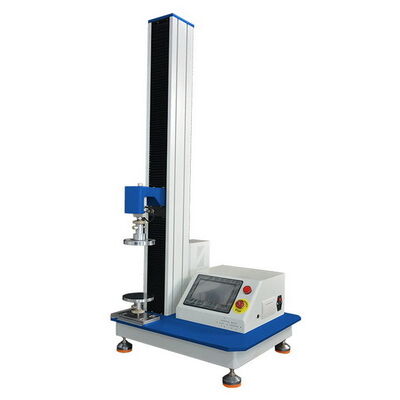

Max 5KN Touch Screen Tensile Compression Testing Machine with Ball Screws iUTM-8170
Brief Introduction:
The iqualitrol iUTM-8170 is suitable for industries such as hardware, rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. Can conduct tests on various materials, semi-finished products, and finished products in the forms of tension, compression, bending, bending, shearing, tearing, peeling;
Elegant exterior design - a dynamic base with advanced spray molding treatment;
Precision transmission mechanism - using high-precision, clearance free ball screws and timely gauge belts as the guarantee of transmission system accuracy;
Advanced control methods - microcomputer or computer data acquisition and motion control;
Ultra high testing accuracy - better than level 1 force measurement accuracy, 1/200000 force value resolution, and deformation measurement resolution up to 0.0001mm.
Technical Specifications:
| Model |
iUTM-8170, touch screen |
iUTM-8170B, computer software |
| Max Capacity | 2, 5, 10, 20, 50, 100, 200, 500kg | |
| Force measurement accuracy | Better than ±1.0% | |
| Force resolution | 1/10, 000 | |
| Effective force measurement range | 1~100%F.S | |
| Accuracy of deformation indication | Better than ±1.0% | |
| Test speed range | 1～500mm/min, optional | |
| Test maximum stroke | 1000mm, excluding grips | |
| Effective experimental space | Front and back 120mm, right and left∝ | |
| Power unit switching | Kgf, gf, N, kN, Ibf | |
| Stress unit switching | MPa, kPa, kgf/cm2, Ibf/in2 | |
| Transformation unit switching | Mm, cm, in | |
| Stop method | Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection | |
| Pointing method | Manual point selection and pre-set point selection (20 points) function during the test process | |
| PC Linked | N/A | Yes |
| Standard items | 1 pair of standard fixtures, 1 micro printer, 1 equipment power cord, 1 operation manual, 1 product qualification certificate, and 1 product warranty card | 1 pair of standard fixtures, 1 micro printer, 1 set of software and data cables, 1 equipment power cable, 1 operation manual, 1 product qualification certificate, and 1 product warranty card |
| Dimension | 570*470*1200mm | |
| Weight | Around 55kg | |
| Motor | Step motor | |
| Power | 1PH, AC220V, 50/60Hz, 10A or customized | |
