Product Details:
Payment & Shipping Terms:
|
| Data Output: | Micro Printer To Print Test Results, With Functions Such As Point-to-print And Curve Printing | Data Statistics: | Single Test, Manual 10-point Statistics, Automatically Calculate Average Value And Fracture Value |
|---|---|---|---|
| Unit Switching: | Force: KN/N/kgf/gf/t/lbf, Displacement: Mm/cm/in | Travel Protection: | Set Upper And Lower Limit Switches To Prevent Exceeding The Preset Travel Range |
| Force Protection: | The System Can Set A Force Value To Prevent Exceeding The Calibrated Value Of The Sensor | Stop Modes: | Upper And Lower Limit Safety Settings, Specimen Break Point Sensing |

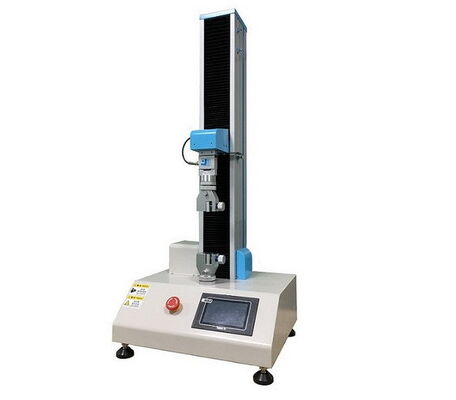

Battery Tab Strength Welding Points Tensile Testing Machine iUTM-D100
Brief Introduction:
The iqualitrol battery tab tensile testing machine, also known as a battery tensile tester, is mainly used for testing the tensile strength of battery welding points.
Safety Devices:
1. Travel Protection: Set upper and lower limit switches to prevent exceeding the preset travel range;
2. Force Protection: The system can set a force value to prevent exceeding the calibrated value of the sensor.
Technical Specifications:
| Model | iUTM-D100 |
| Capacity | 10N, 20N, 50N, 100N, 200N, 500N, 1000N |
| Controller | Touch screen controller |
| Units | kgf,gf,N,kN,lbf |
| Length units | mm,cm,Inch |
| Pressure Units | MPa,kPa,kgf/cm2,lbf/in2 |
| Force resolution | 1/100,000 |
| Accuracy | ±1% |
| Test speeds | 1—500mm/min, adjustable |
| Stroke | 480mm |
| Test width | 120mm |
| Stop modes | Upper and lower limit safety settings, specimen break point sensing |
| Data output | Thermal printer |
| Motor | Stepper Motor, Stepper Driver |
| Power consumption | 200W |
| Dimension | 450*380*1080mm |
| Net weight | 35kg |
| Power supply | 220V 50Hz |
| Standard delivery | Grip, power cable, manual |
