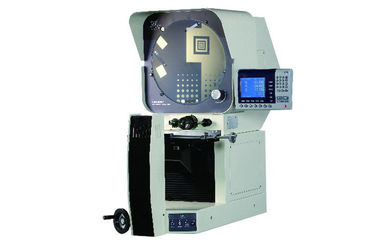

Sturdy Structure 16" Screen Horizontal Profile Projector with Fiber Light and DP300

China Sturdy Structure 16" Screen Horizontal Profile Projector with Fiber Light and DP300 supplier

Large Image :  Sturdy Structure 16" Screen Horizontal Profile Projector with Fiber Light and DP300

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: HB16-3015

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negogiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Contact Now
Detailed Product Description
Travel: X-Z 300x150mm Screen: Effective Range ≥ Ø400
Resolution: X-Z 0.0005mm Accuracy: ≤3+L/200(um)
Objective: Standard 10x Objective Focus Range: 75mm (for Focusing)
High Light:

vision measurement system

,

visual measuring machine



Built-in Printer Vision Measuring Machine With 400mm Screen / Digital Readout DP300



Product Features:

► 400mm diameter screen with digital protractor;

► 300x150mm precision movement work-stage, 300x200mm optional;

► Work-stage sway range between ±15°;

► Halogen profile and fiber surface illumination adjustable;

► Geometric multifunction data processing system DRO DP300;

► Built-in Mini-printer;

► Available 10x,20x,50x, objective rotary table and foot-switch, etc.



Technical Specifications:

Model HB16-3016
Metal Stage Size 408x126mm
Stage Travel: X and Z-axis 300x150mm
Stage Travel:Y-axis 75mm (for focusing)
X and Z Linear Resolution 0.0005mm
Sway Range ±15°
Accuracy ≤3+L/200(um)
Screen Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle)
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout DP300 Multifunctional Data Processing System
Illumination Contour illumination:24v/150w (halogen Lamp )
Surface illumination:21v/150w (Optical Fiber)
Power Supply AC110V/60Hz; 220V/50Hz,650w
Dimension (D×W×H) 1160x600x960mm
Packing Dimension (L×W×H) 1300x880x1250mm
Instrument Gross/Net Weight 200/160kg



Standard Delivery:

Digital Readout DP300 10x Objective Screen Clamp Device
Built-in Mini-printer Power Cable Operation Manual



Optional Accessories:

Measuring Software Working Cupboard Standard Block Rotary Vise
20x Objective 50X Objective Over-Chart Printing Paper
Holder Clamp V-shape Clamp Swivel Center Support Foot-Switch



Glass Ruler (Scale), used to do calibration of X-Y Table:

Sturdy Structure 16" Screen Horizontal Profile Projector with Fiber Light and DP300
