Projector Body Lifting System Vertical Profile Projector with Digital Readout DP100

China Projector Body Lifting System Vertical Profile Projector with Digital Readout DP100 supplier

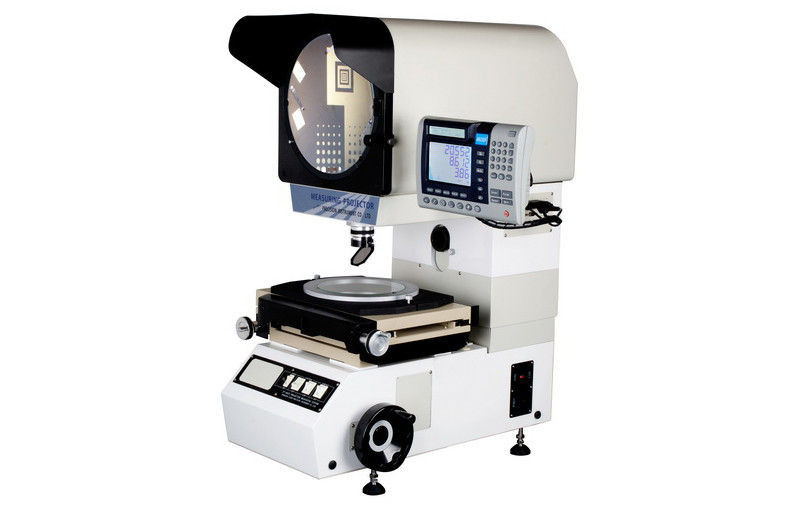

Large Image :  Projector Body Lifting System Vertical Profile Projector with Digital Readout DP100

Product Details:

Brand Name: iqualitrol
Model Number: VP12-2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Data Processor: Digital Readout DP100 Lifting: Projector Body
Accuracy: ≤3+L/200(um) Resolution: 0.0005mm
Printing: Built-in Mini Printer Illumination: 24v/150w Halogen Lamp
Highlight:

vision measurement system

,

visual measuring machine



Projector Body Lifting System Vertical Profile Projector with Digital Readout DP100



Product Features:

1, 300mm diameter screen with digital protractor;

2, Projector body lifting system to focus;



3, 250x150mm or 200x100mm precision movement work-stage;

4, Geometric multifunction data processing system upgrade to DRO DP300;



5, Built-in Mini-printer;

6, Available 10x,20x,50x,100x objective, rotary table, foot-switch, edge detector, etc.



Note: Rotary Table on Picture is Optional



Technical Specifications:

Reverse Image VP12-2010 VP12-2515
Obverse Image VP12-2010Z VP12-2515Z
Metal Stage Size 450x280mm 450x280mm
Glass Stage Size 306x196mm 306x196mm
Stage Travel: X and Y-axis 200x100mm 250x150mm
Stage Travel: Z-axis 100mm (for focusing) 100mm (for focusing)
Accuracy ≤3+L/200(um) ≤3+L/200(um)
Resolution of X and Y-scale 0.0005mm 0.0005mm
Screen Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout DP100 Multifunctional Data Processing System
Illumination Surface and Contour Illumination:24v/150w halogen lamp (adjustable);
Cooling System Forced Cooling (3-axis-fans)
Power Supply AC110V/60Hz; 220V/50Hz,650w
Dimension (D×W×H) 760x530x1100mm 760x530x1100mm
Packing Dimension (L×W×H) 1540x790x1500mm 1540x790x1500mm
Instrument Gross/Net Weight 260/220kg 260/220kg



Standard Delivery:

Digital Readout DP100 10x Objective Screen Clamp Device
Built-in Mini-printer Transmitted lens Operation Manual



Optional Accessories:

Measuring Software Rotary Table RT3 Printer Paper Power Cable
20x Objective 50X Objective 100X Objective Edge Detector
Holder Clamp V-shape Clamp Swivel Center Support Standard Block0
Working Cupboard Over-Chart Foot-Switch



What should be taken into consideration when buying an profile projector (optical comparator)?



1, Which light path is best for your application, Vertical or Horizontal?



•Horizontal light path instruments have a beam of light traveling horizontally across a stage. This type of machine is ideal for large heavy parts and shafts to be held on V blocks or between centers.



Typical applications include castings, transmission shafts, thread form measurement, and machined components.



•Vertical light path instruments have a beam of light traveling vertically. Parts being measured/inspected are placed on a plate of glass, which is on the system's XY stage, which the light beam travels through.



Vertical comparators are ideal for flat parts like gaskets, O-rings, stamped parts, and electronics. iqualitrol line of vertical comparators feature quick release mechanisms on both axes, making measurements on our vertical machines much faster than on horizontal machines which feature quick release on only 1 axis.





2, What screen size and stage size best suits your application?



Screen sizes from 14" to 32" are available. Before choosing a screen size, determine how much of the part REALLY must be viewed at one time.



When using a system it is not necessary to view the entire part to measure it. Calculations can be made by dividing the screen diameter by the lens magnification.



For example, using a 10X lens on a 16" optical comparator would enable viewing 1.6" of the part on the screen (16"/10=1.6"). Keep in mind it is good practice to keep within one inch of the screen margin when viewing an image with an overlay. Verify that the stage size, travel, and weight capacity will accommodate all of the parts that are intended to be measured or inspected. In general, screen sizes 16" and smaller are benchtop units with weight capacities up to 150 pounds.





3, What lens/lenses you will require?



Follow the chart below to decide what lens will match the tolerances required. A basic rule of thumb is that a typical attentive operator can repeatedly discriminate .004” on the comparator screen. Dividing the “discernible resolution” by the lens magnification determines the minimum resolution attainable for each lens.





4, What type of readout/software will you require, or will you be using overlays?



If you will be using overlays only, our base models without scales are an ideal cost effective solution. It is good practice to keep within one inch of the screen margin when viewing an image with an overly.



If measurements are required, select a basic XY digital readout if only positions and distances results are necessary. However, if measurement of circles, angles, and parametric distance is required, then select a readout or Quickmeasuring1.0 software with geometric capability. Repetitive part measurement may encourage the selection of a CNC capable readout. Automatic edge sensing should be considered to eliminate operator subjectivity and increase repeatability and accuracy.





5, What options or tooling will be required?



Repeatability and accuracy will suffer if the workpiece is not properly and securely held. Careful consideration should be given to tooling and to the surface on which you place your comparator.
