Resolution 0.5um Linear Scale Encoder for Dimensional Measurement Vision Measuring Machine

China Resolution 0.5um Linear Scale Encoder for Dimensional Measurement Vision Measuring Machine supplier

Large Image :  Resolution 0.5um Linear Scale Encoder for Dimensional Measurement Vision Measuring Machine

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: MSA

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 200 pcs per month
Contact Now
Detailed Product Description
Applied To: Precision Instrument Working Voltage: 5V+/-5%DC
Working Temperature: Temperature :-10~45℃;Humidity≤90% Effective Length: 50mm - 500mm
High Light:

vision measurement system

,

visual measuring machine


Resolution 0.5um Linear Scale Encoder for Dimensional Measurement Vision Measuring Machine

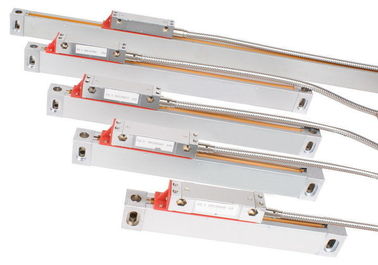

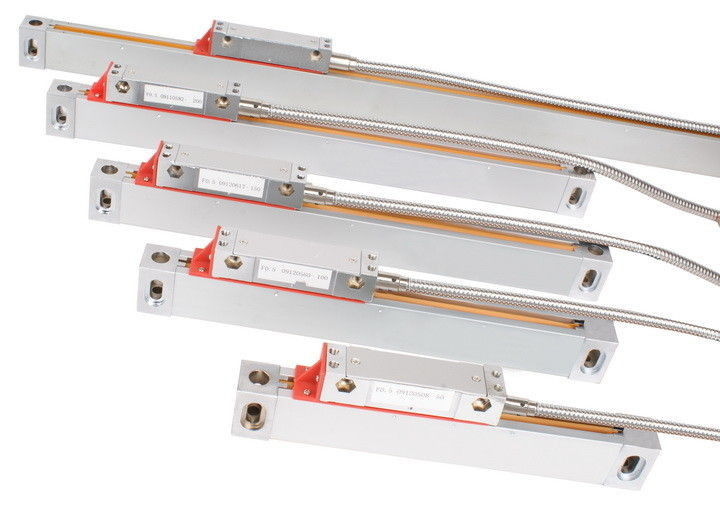

Linear Encoder/Scale MSA is a displacement sensor widely used with precision instrument, such as profile projector, Vision measuring machine, measuring microscopes, etc.
Resolution 0.5um Linear Scale Encoder for Dimensional Measurement Vision Measuring Machine
MSA Installation Size:
Resolution 0.5um Linear Scale Encoder for Dimensional Measurement Vision Measuring Machine


Application of Linear Encoder, Linear Scales:

  • It adopts the advanced coating replication technology of glass grafting; it ensures the accuracy of glass pitch: the benchmarks main and auxiliary grafting;
  • It adopts the imported electronic components and uses the latest SMT chip mounting technology, it ensures the durability of electronic components and for each linear encorder;
  • It can read system adopts the reliable and durale five-bearing design, it ensures the movement optical induction system smoothly durably;
  • It adopts the double anti-oil, high elasticty and anti-aging plastic as dust-seal,it ensures optimum sealing performance and minimal friction force.
  • It adopts the precision spring as position controller for the scan read, it ensures the movement of bearing pulley durably and smoothly even in the condition of high-speed;
  • It is strictly inspected by testing instrument for each glass, electronic components,dust-seal and snake skin tube,it ensures each linear encorder can calibration of the laser interferometer smoothly;


Technical Specifications:

TypesMSA5MSA1MSA0.5MSA0.2MSA0.1
Resolution5um1um0.5um0.2um0.1um
Max.Working Speed60m/min20m/min10m/min
Grating Pitch20 um10um
Output SignalTTL,RS422~1Vpp
Grating Measuring SystemTransmission infrared optical measuriement system, infrared wave length: 880um
Measuring Length25-600mm
Scan Unit Rolling System90°five ball bearing rolling system
Working Voltage5V±5%DC
Working EnvironmentTemperature :-10~45℃;Humidity≤90%
Accuracy50≤ML≤500mm Standard: ±5um Precision: ±3um
510≤ML≤600mm Standard: ±8um Precision: ±5um
