Report Generation 2D Quick Measuring Software For Optical Profile Projector QM1.0 Version

China Report Generation 2D Quick Measuring Software For Optical Profile Projector QM1.0 Version supplier

Large Image :  Report Generation 2D Quick Measuring Software For Optical Profile Projector QM1.0 Version

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: QM1.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 15 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Contact Now
Detailed Product Description
Features: SPC Function Report: Word Excel And TXT
Record: Q-axis Measurement Of Basic Graph: Point, Line, Circle, Arc, Retangle And Cirque
High Light:

vision measurement system

,

visual measuring machine



2D Quick Measuring Software For Optical Profile Projector QM1.0 Version



2D Measuring software Quick Measuring 1.0 version used to work with profile projector(optical comparator), it can collect the scale coordination in PC keyboard, DRO panel and foot switch. Using the input point, can measure the basic graph element and construct elements. largely eliminates human error and improves the operators‘ working efficiency.

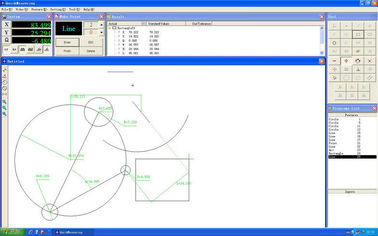

Modern Compact Interface Design:



  • Toolbar
  • Coordinate display column
  • Geometrical display column
  • Measured result display column
  • Measuring and construction tool column
  • Dimension label tool column
  • Measuring graphic window
  • Procedure edit window



Functions:

  • Measurement of basic graph: Point, Line, Circle, Arc, Retangle and Cirque;
  • Axis-skew and coordinate-shift;
  • Element construction: Construct the Center, intersection, Midpoint, Line, Circle and Angle,etc;
  • Save as*. Dxf and edit in AutoCAD;
  • Multi-points measurement;
  • Word Excel and TXT report;
  • English operation interface, other language available;
  • Zoom in, Zoom out, Move, Print, Select, Cancel select, Delete;
  • Tolerance setup;
  • Size and angle label;
  • Scale calibration;
  • Q-axis record;
  • SPC function
