Model: | IRY-1 | Friction Speed: | 30 Circles Per Minutes |
---|---|---|---|
Hammer Size: | 45 * 50 Mm | Friction: | Distance 100mm |
Highlight: | universal material tester,universal testing machine |

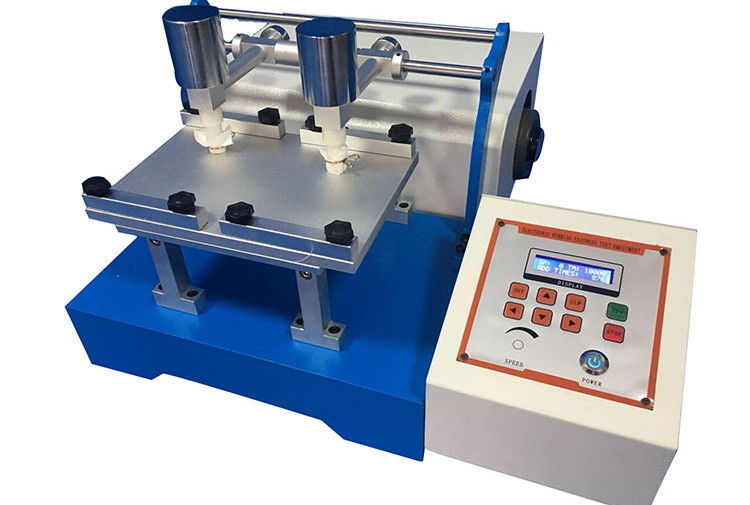

Dyeing Colour Fastness Tester with 2 Stations and LCD Controller
Brief Introduction:
The dyeing fastness tester is attached to the surface of the friction hammer of the machine with a dry or moist white cotton cloth, and after a certain amount of heavy load and frequency, after rubbing the colored test piece, the dyeing friction fastness level is evaluated according to the gray mark. It can also be used as a friction test for organic solvents. With power-off memory function.
Technical Specifications:
Friction speed | 30 circles per minutes |
Friction hammer load | 200g |
Auxiliary load | 300g |
size of the friction hammer | 45 * 50 mm |
Size of test piece | 22 * 3 cm |
white cotton cloth | 5 * 5 cm |
Friction area of white cotton cloth | about 1cm2 |
friction distance | 100mm |
Counter | LCD 0~999,999 |
number of friction groups | 6set |
Power supply | AC220V/50Hz |
Net Weight | 60Kg |
Dimension | 60*50*40cm |
