|Drop Weight:||9.1kg ± 0.46Kg (20 ± 1 Pound) Or 10 Kg||Impact Height:||610 Mm Or 1000mm, Adjustable|
|Inner Material:||SUS#304 Stainless Steel Plate||Impact Surface:||Stainless Steel Plate|
|Filling Material:||Glass Wool||Impact Method:||Free Fall Impact|
universal material tester,
tensile testing machine

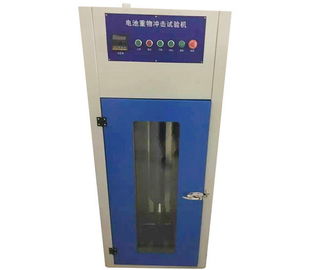

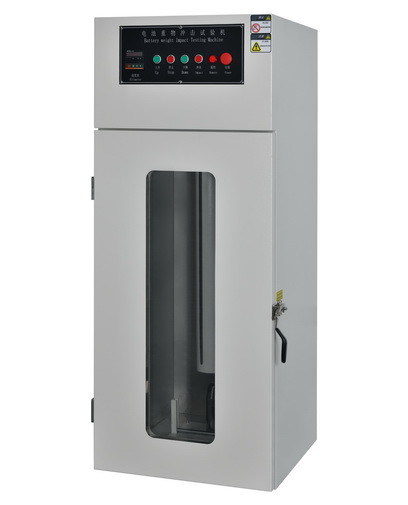

Battery Free Falling Impact Testing Machine with Impact Height 1000mm Conform IEC 62133
(1) Test sample The battery is placed on a test bench, and a 15.8 mm (5/8 inch) diameter rod is placed crosswise at the center of the sample.
(2) A 9.1kg or 10kg weight falls from a height (61CM or 100CM) at the intersection of the specimen and the steel bar.
Meet the standards:
IEC 62133:2012 specifies requirements and tests for the safe operation of portable sealed secondary cells and batteries (other than button) containing alkaline or other non-acid electrolyte, under intended use and reasonably foreseeable misuse.
SJ/T11169-1998 Standard for lithium batteries
SJ/T11170-1998 Safety standard for household and commercial batteries
UL1642:2008 Standard for Lithium Batteries
cover primary (nonrechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.
UL2054:2008 Safety standard for household and commercial batteries
QC/T 743-2006 Li-ion Storage Battery for Electric Automotives
QC/T 742-2006 Lead-acid batteries for electric vehicles
QC/T 744-2006 Nickel-metal hydride batteries for electric vehicles
Primary batteries - Part 4: Safety of lithium batteries, specifies tests and requirements for primary lithium batteries to ensure their safe operation under intended use and reasonably foreseeable misuse.
|Drop weight||9.1kg ± 0.46Kg (20 ± 1 pound) or 10 Kg|
|Impact height||610 mm or 1000 mm (adjustable limit)|
|Impact method||release the ball after lifting it to a certain height, the ball falls freely in the vertical direction, does not tilt, does not shake. Bar: 15.8mm (5/8 inch) steel bar|
|Inner box material||SUS#304 stainless steel plate|
|Chamber material||Galvanized cold plate paint treatment|
|insulation||Silicone Foam Tight|
|Air outlet||120mm on the back of the cabinet Box Door: single door, double deck, open window (tempered glass) with explosion-proof membrane, cold handle door lock|
|Impact surface||stainless steel plate|
|Power supply||AC220V/50Hz, ф5A|
Impact surface: stainless steel plate
Inner box material: SUS#304 stainless steel plate
Carton material: cold plate paint
Filling material: glass wool
Impact Method: Free Fall Impact
Box Door: single door, double door, open observation window, cold handle door lock
Protection device: upper and lower limit protection switch, safety latch (located at the bottom of the guide tube, protects against sudden power failure)
Main electrical components:
Electromagnet: Taiwan Chang Yi
Electronic Components: Hong Kong Excels
Push Button Switch: Hong Kong Ark
Conditions of Use:
Use voltage: 220V±10% 50HZ
Operating Environment: Permitted Operating Environment 0 ~ 35°C
Performance Guaranteed Environment: 5 ~ 35°C
one host for testing machine, two standard falling balls, two safety latches, one limiting post,
SJ/T 11170-1998 Domestic and Commercial Battery Safety Standards
1. The test sample battery should be placed on a flat surface. A 15.8 mm (5/8 inch) diameter rod was placed crosswise at the center of the sample. A 9.1 ± 0.16 (20 ± 1 pound) weight was dropped from the height of 610 ± 25 mm (24 ± 1 inch) onto the sample.
2. The cylindrical or prismatic battery should have its longitudinal axis parallel to the plane and perpendicular to the center of the lying sample. The longitudinal axis of the 15.8 mm (5/8 inch) diameter shaft is subjected to impact. The prismatic battery also has to be rotated by 90° about its longitudinal axis so that its wide side and narrow side can withstand the impact test. Each sample battery is subjected to one impact, and different samples are used for each test.
3, coin-type or button-type batteries, to make the surface of the test sample parallel to the plane. A 15.8 mm (5/8 inch) diameter curved surface was placed on the center of the battery.
